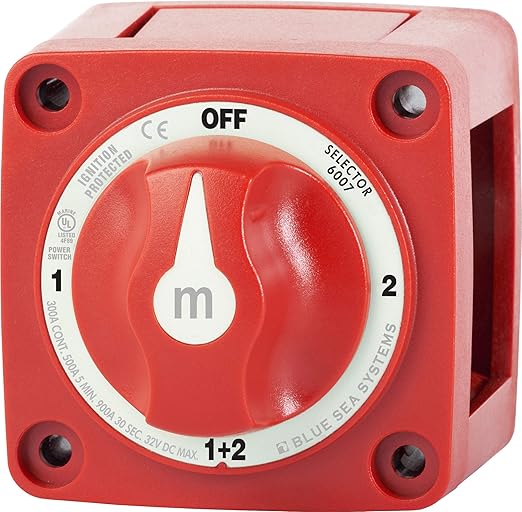

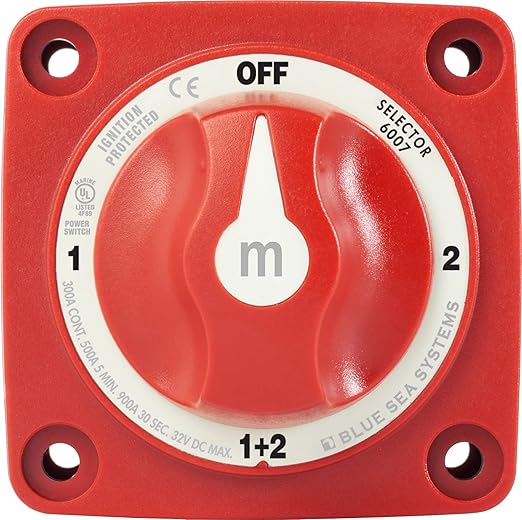

Blue Sea Systems 6007 M-Series Battery Switch Selector 4 Position

Bargainshore Approved: We test and research top-quality products from trusted brands to bring you the best recommendations.

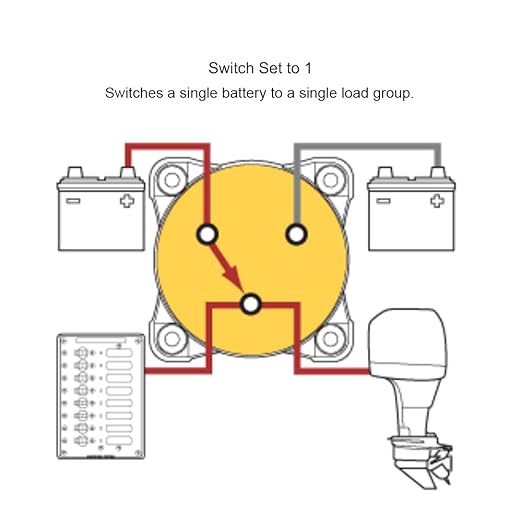

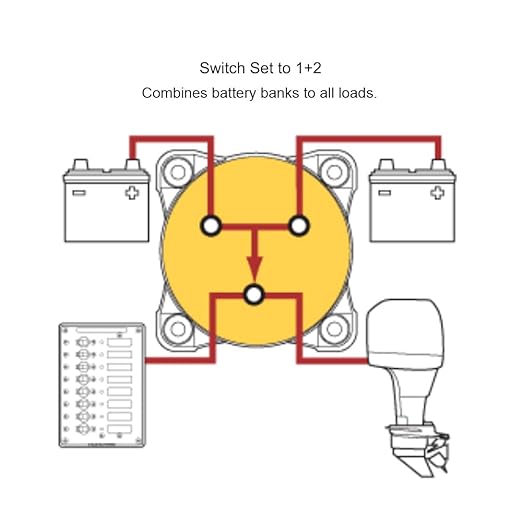

• Blue Sea Systems Battery Switch m-Series Selector, part number 6007, is a Selector 4 Position switch. Switches isolated battery banks to all loads or combine battery banks to all loads
• IP66 waterproof, ISO 8846 and meets ABYC requirements. Ignition-protected,—safe for installation aboard gasoline-powered boats
• Make-before-break contact design allows switching between battery banks without power interruption
• Continuous Rating: 300A, Maximum Voltage: 32V DC

Blue Sea Systems Battery Switch m-Series Selector, part number 6007, is a Selector 4-position switch. It can switch isolated battery banks to all loads or combine battery banks to all loads. It is IP66 waterproof, ISO 8846, and meets ABYC requirements. It is ignition-protected, making it safe for installation aboard gasoline-powered boats. The make-before-break contact design allows switching between battery banks without power interruption. Continuous Rating: 300A, Maximum Voltage: 32V DC.

---

From the manufacturer

• Meets American Boat and Yacht Council (ABYC) requirements

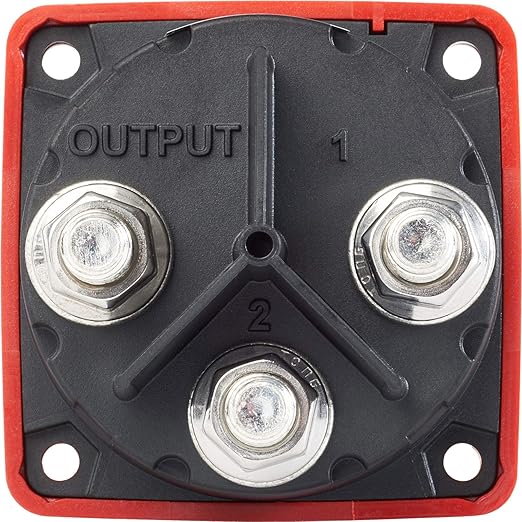

• Tin-plated Copper studs for maximum conductivity and corrosion resistance
• 7/8" (22 mm) stud length accepts multiple cable terminals
• Blue Sea System's one-piece terminal stud design never loosens over time
• Accepts up to 4/0 AWG (120 mm²) battery cables
• Tactile indicator conveys knob position by feel

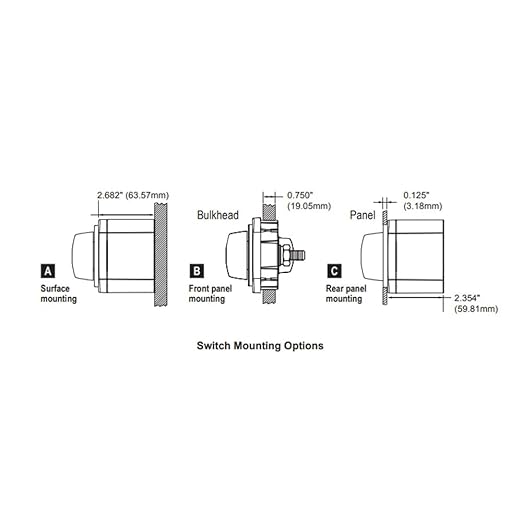

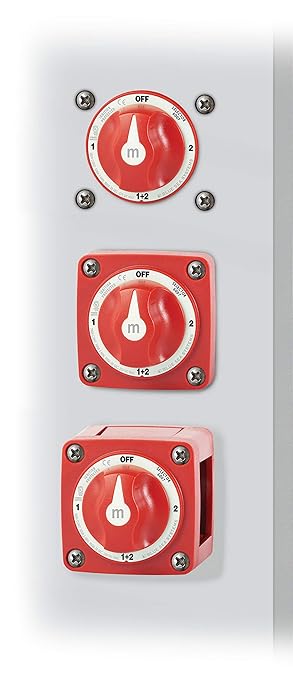

• Case design offers multiple mounting options

Meets the following Regulatory Specifications

• CE
• Ignition Protected
• IP66
• ISO 8846 Marine
• SAE J1171 Marine
• UL 1107
• UL1500

M-Series Battery Switches

300 Amps continuous rating for outboards and small gasoline or diesel engines.

Battery management is central to the safe operation of a boat or vehicle.

All boats and vehicles with an engine have at least one battery with the primary purpose of starting the engine and providing power for loads such as lights, pumps, and electronics. The safe switching between batteries, loads, and charge sources is achieved using products like the m-series battery switches.

An innovative snap-together design increases reliability and longevity without the use of internal fasteners. The back cover is one-piece with break-out-sides, for easier installation. Every stud is pressed into a copper reinforced bus for added support.
