Bargainshore Approved: We test and research top-quality products from trusted brands to bring you the best recommendations.

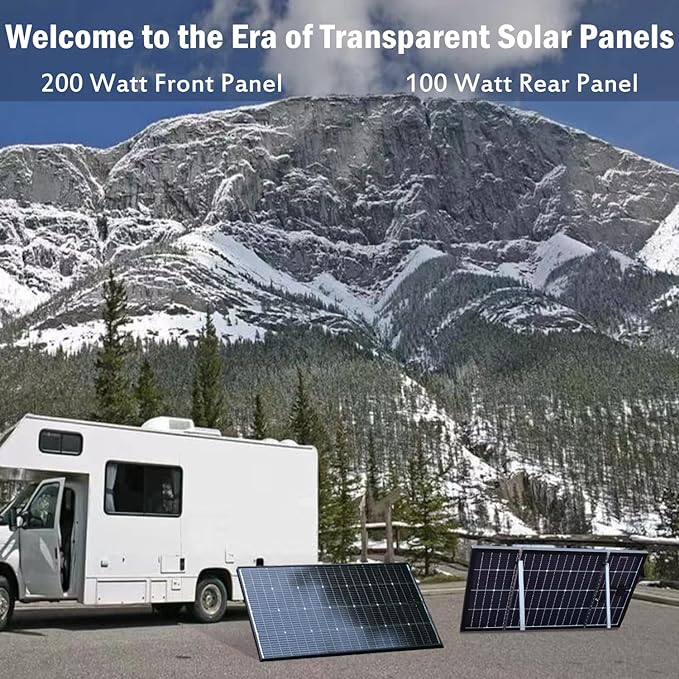

• Bifacial Solar Panel: Have you ever seen solar panels with a transparent back sheet design? JJN has! Compared with traditional back sheets, this upgraded version of JJN's solar power system can generate electricity not only from the front but also from the back! Efficiency increased by at least 5%!
• 10BB Solar Cell: Are you still struggling to choose a 9BB or 5BB solar panel? 10BB is here! Less influence from the shadow, more power than the average 5BB solar cell. Passed EL-tested solar modules. 10BB solar cell, your best choice of solar power system.

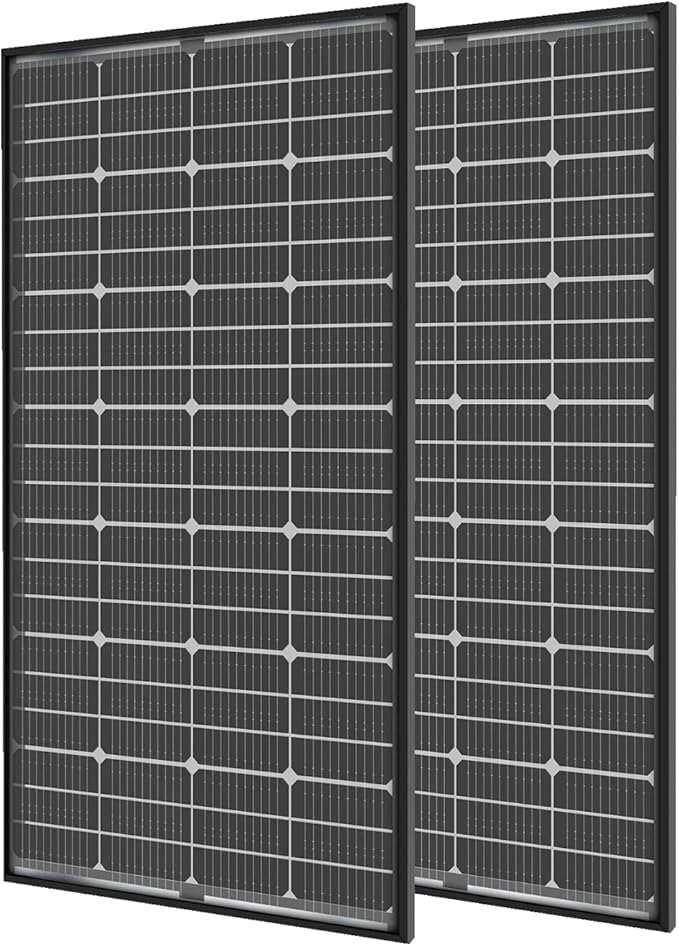

• Durable Solar Panels: JJN's two 200-watt solar panels feature a black corrosion-resistant aluminum frame. They can also withstand strong winds of 2400Pa and Snowload of 5400Pa. Both the IP65 junction box and IP67 connectors have excellent waterproof function, allowing you to use them outdoors with confidence.
• Installation Friendly: Each solar panel has specially designed pre-drilled holes for easy installation. It can fully meet the installation needs of various applications. For a good partner adjustable tilt mount, please search B09XB7TCDY.
• Long Warranty: As a professional solar system manufacturer, we promise an extra-long transferable power output warranty of 30 years. Whenever you encounter any problems, JJN Solar Panels Service will actively provide you with professional off-grid system solutions.

---

Product Description

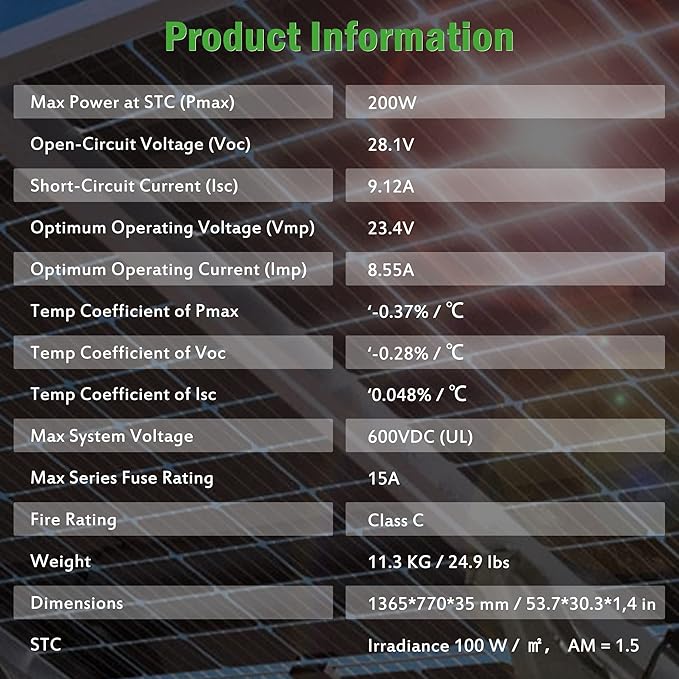

200w Bifacial Solar Panel Specifications

Max Power at STC	200W
Open Circuit Voltage	28.1V
Short Circuit Current	9.12A
Optimum Operating Voltage	23.4V
Optimum Operating Current	8.55A
Operating Temperature	-40°F to 194°F (-40℃ to +90℃)
Maximum Series Fuse Rating	15A

Solar Cells	84 Cells
Output Cable	12 AWG
Junction Box	IP65 Waterproof
Connectors	MC-4

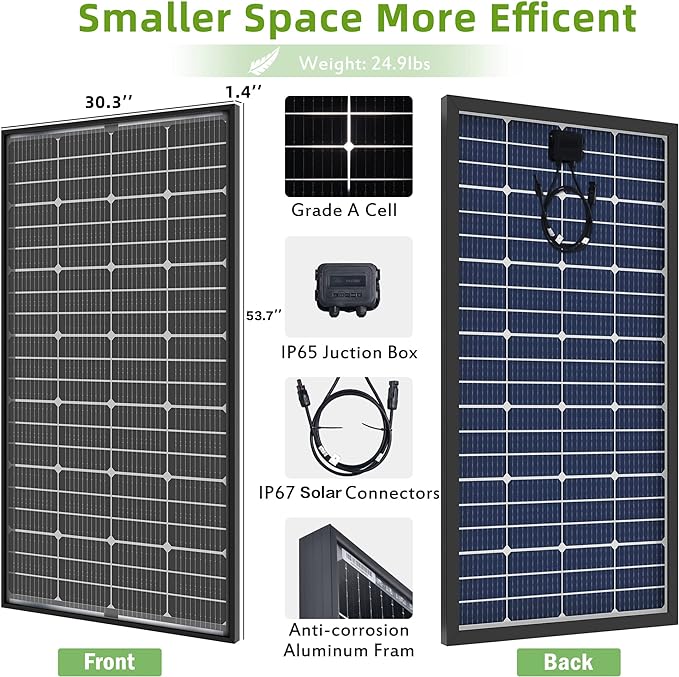

Product Dimensions	53.7 x30.3 x 1.4 in
Product Weight	24.9 lbs (11.3KG)

1.

More energy with a two in one bifacial design

 Reliable and Durable - High Conversion

Passes EL test without any microcracks

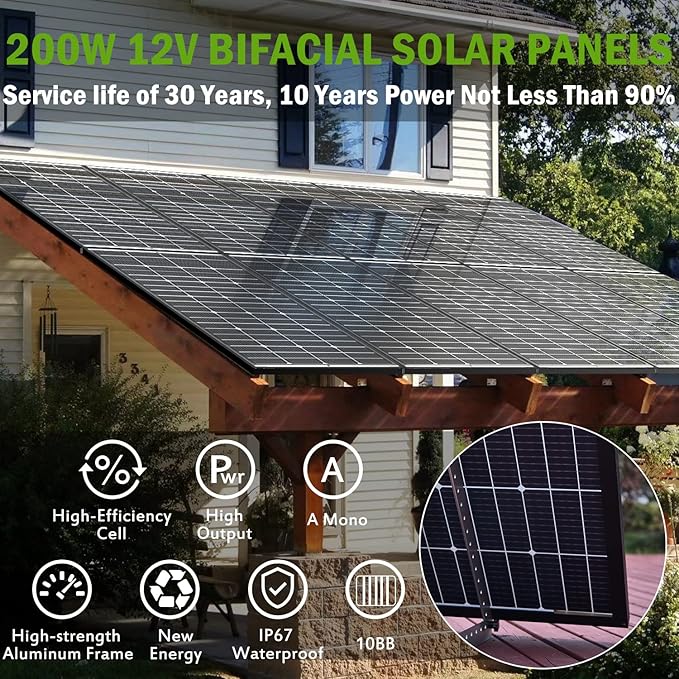

JJN 200 Watt 12 Volt 10BB Bifacial Solar Panel

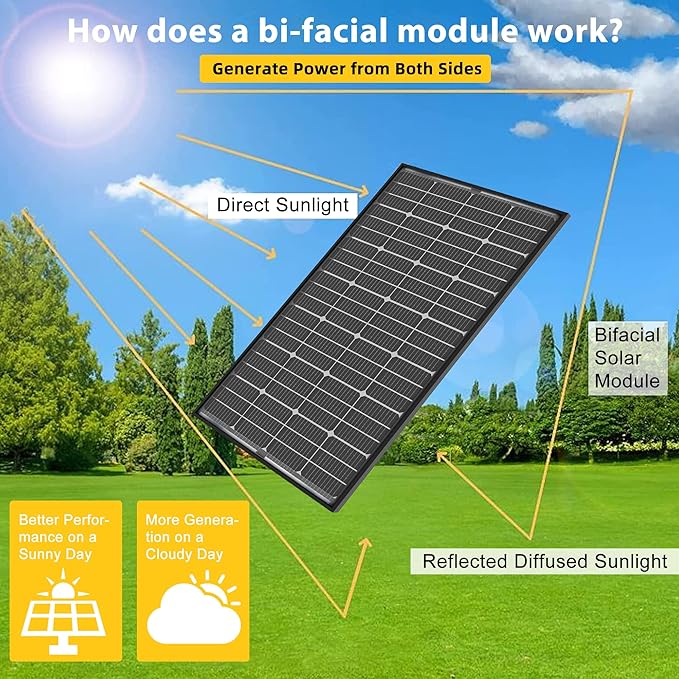

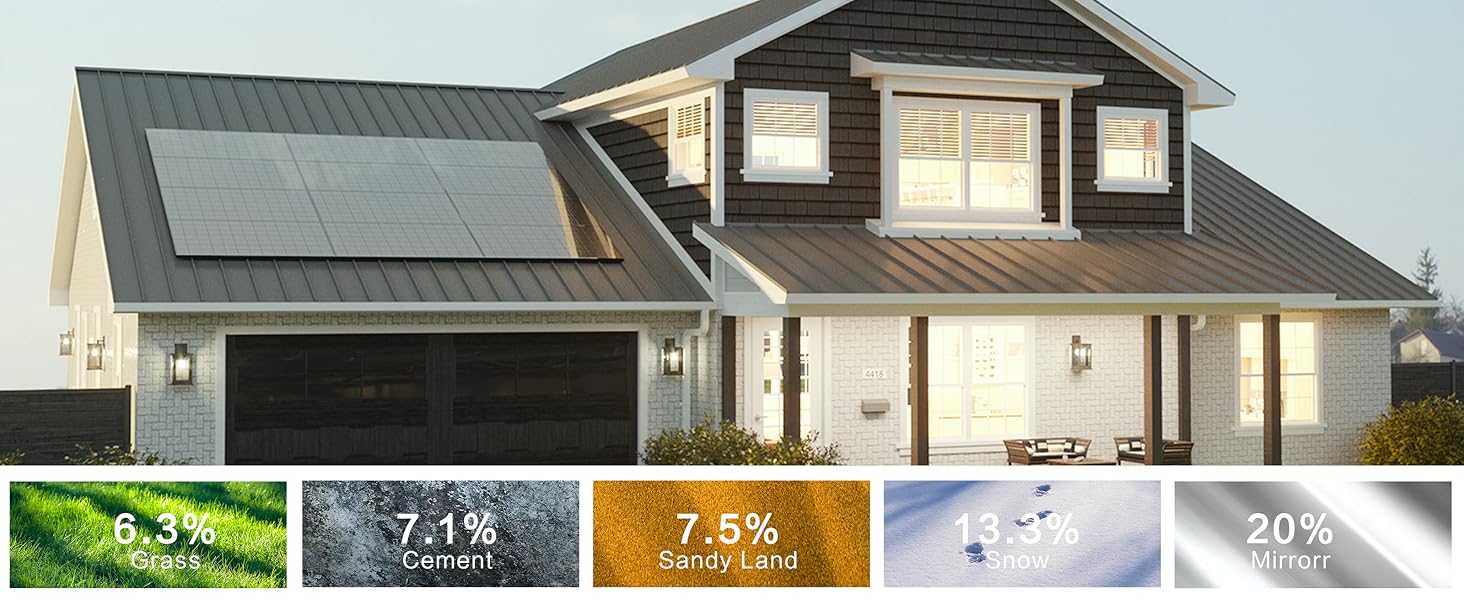

This bifacial solar panel performs best when installed near highly reflective surfaces, such as swimming pool glass or sandy, stony, or snowy areas. Although the front of the panel still absorbs the majority of the sunlight, the bifacial models are capable of increasing energy production by 5%- 20%. The exact amount of extra energy will depend on the environment surrounding the solar panels themselves.

1.
2.
3.

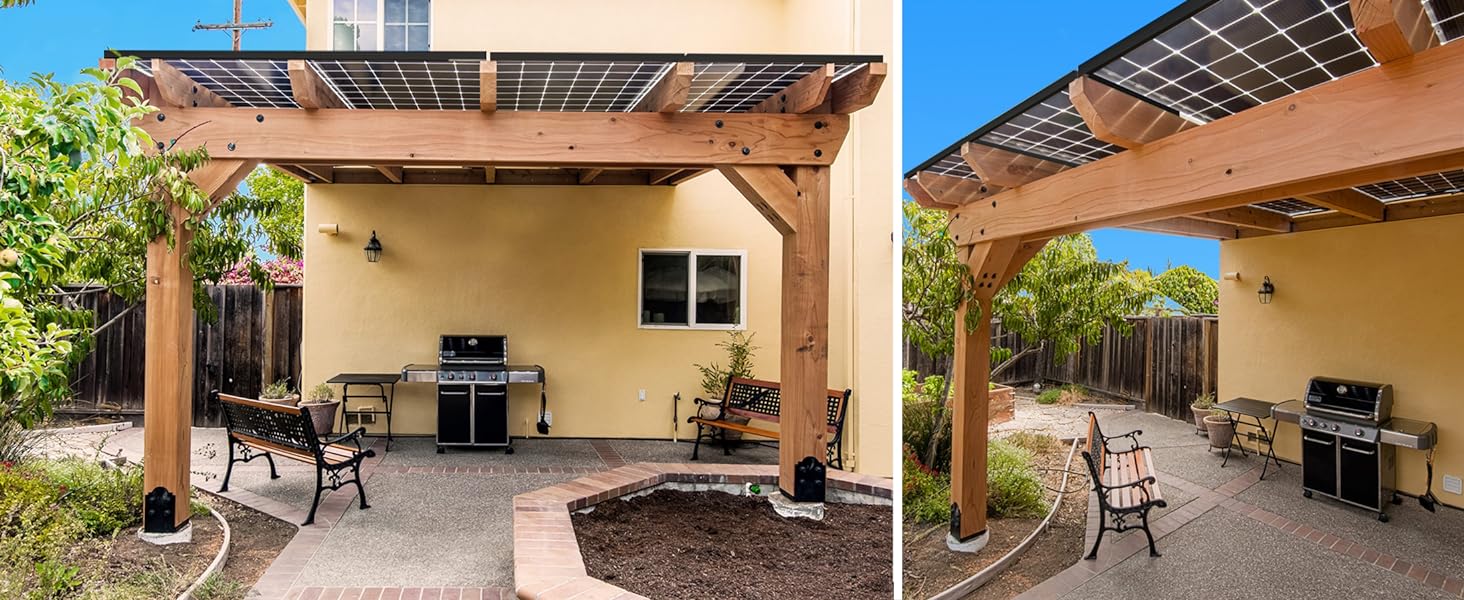

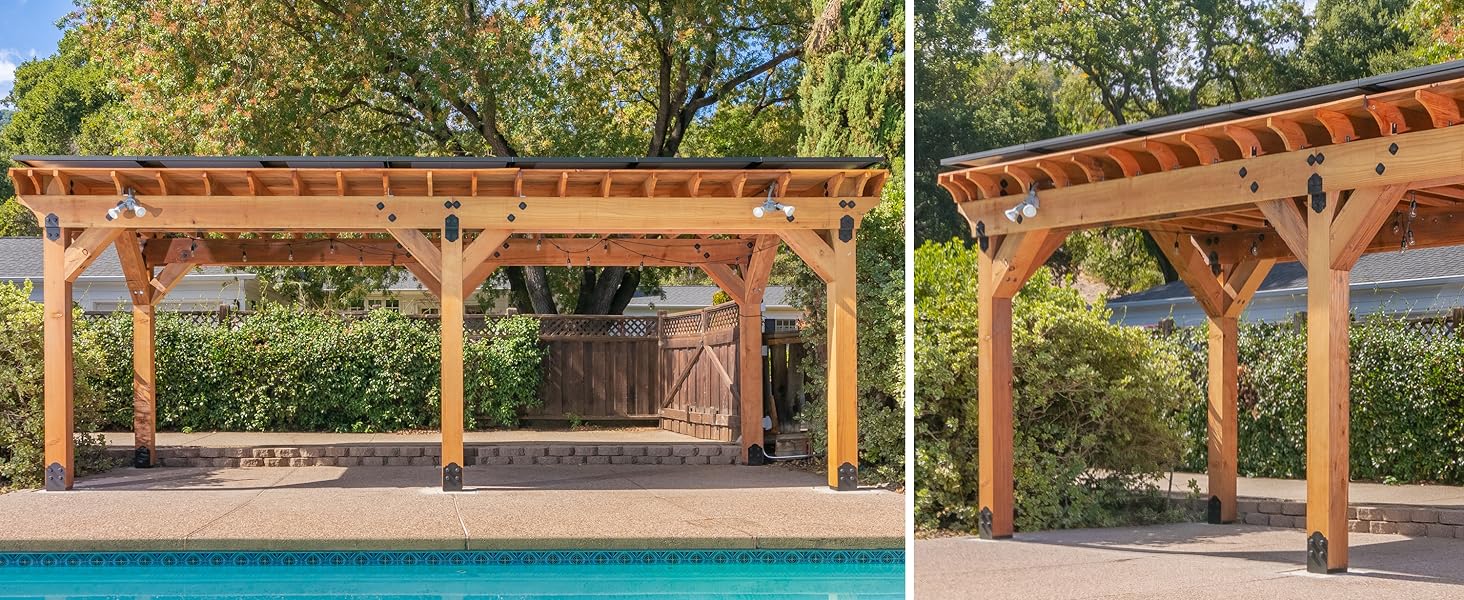

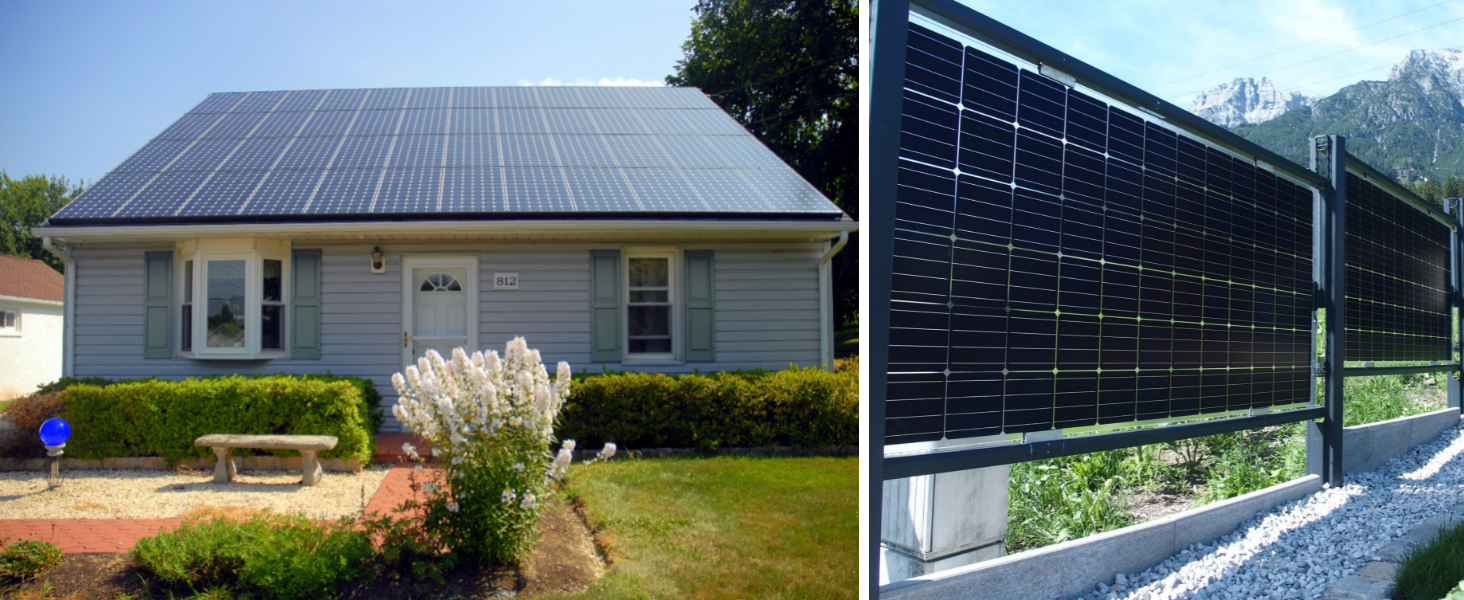

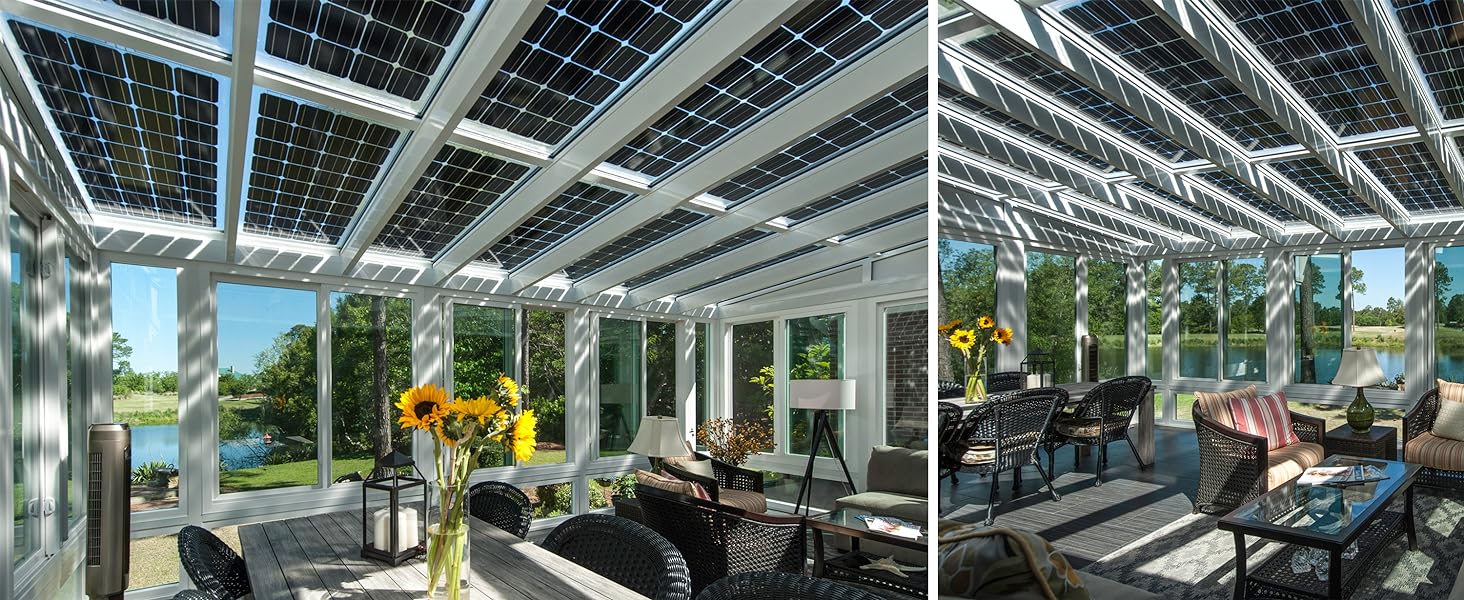

1 For Carport 2 For Garden 3 For Pergola 4 For Sun Room 5 For Home & Fence

• Does the 200W Bifacial Solar Panel generate a full 200W of power?

  In most cases, it is normal for a solar panel not to deliver its full nominal power. Some of the reasons why this happens, Reasons are given below.

  Light Intensity

  Surface Temperature

  Sunlight Angle

  Panel Shading

• What is the Benefits of Using Bifacial Solar Panels?

  A: Captures sunlight from both sides

  B: More efficient and powerful than mono-facial panels

  C: More durable

  D: Perform better in overcast weather

  E: Install in any direction

• What is the difference between 10BB and 9BB solar panels?

  10BB cells have more busbars than 9BB cells, which reduces internal resistance loss by making the bus spacing smaller, extending the lifetime of the cells.

• Why should you buy Bifacial Solar Panels?

  Bifacial panels outperform traditional, one-faced panels throughout the year. Under ideal conditions, bifacial panels can produce 5%-20% more energy.
