SKU:LFP12100BH

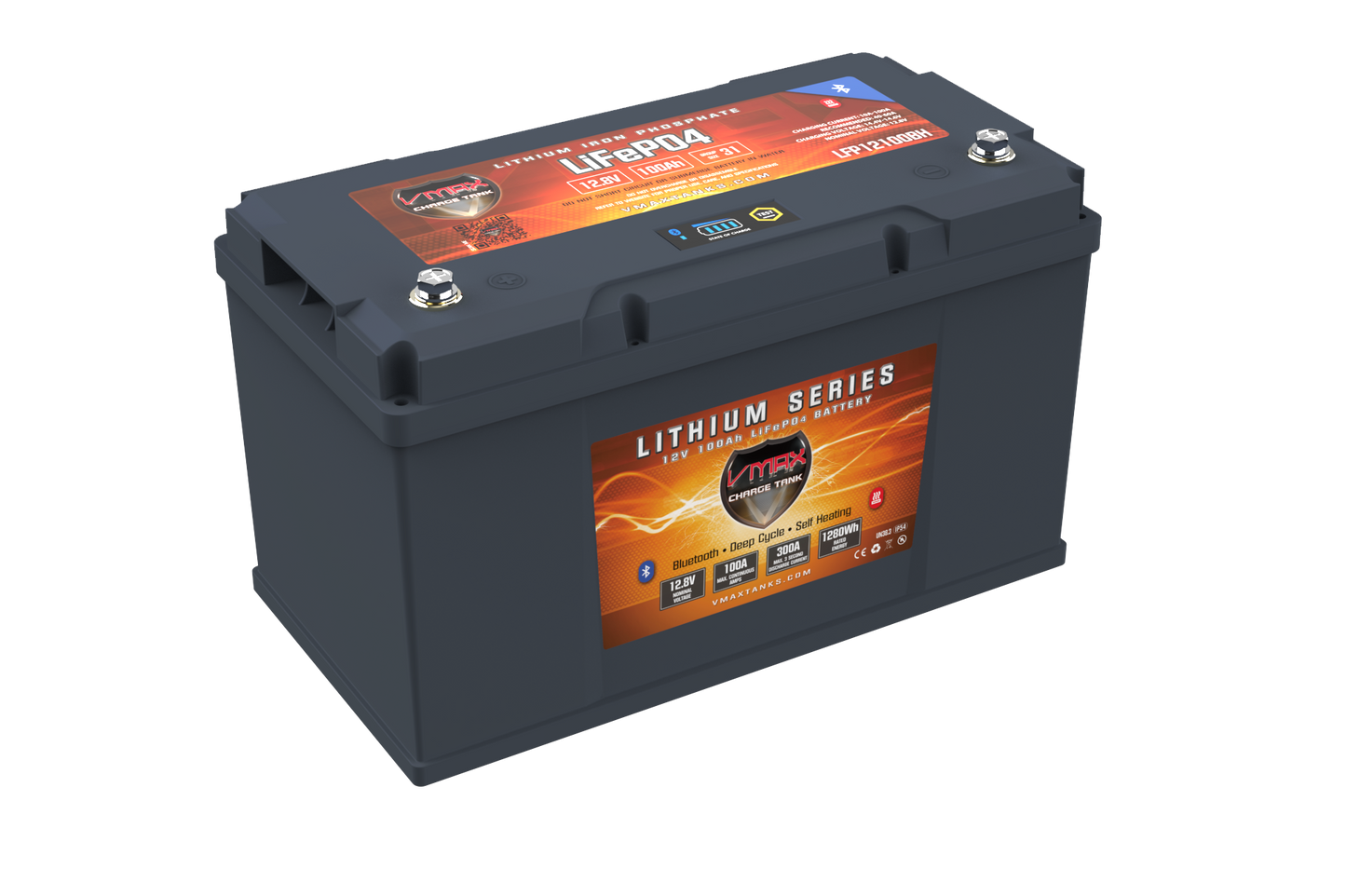

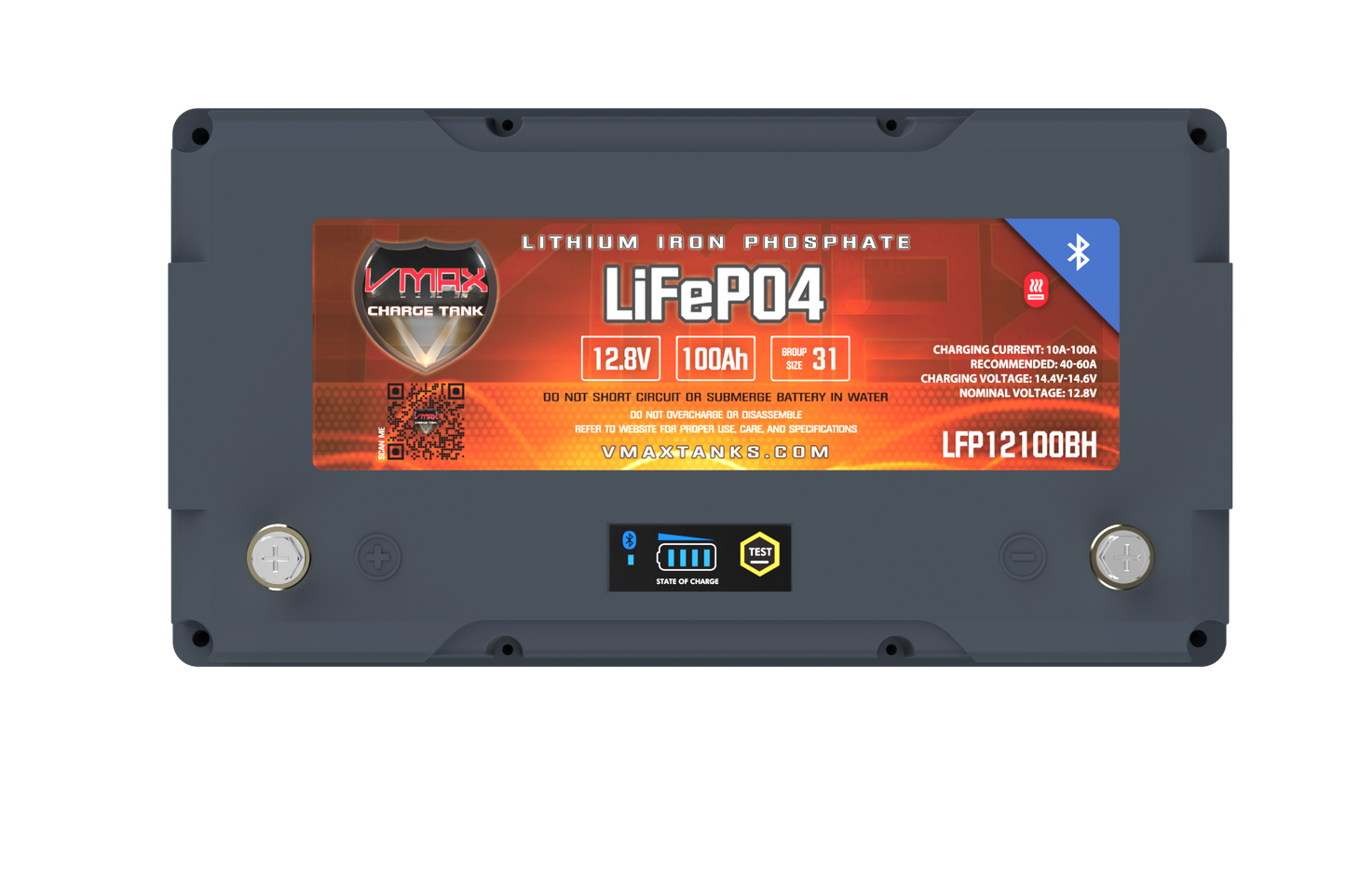

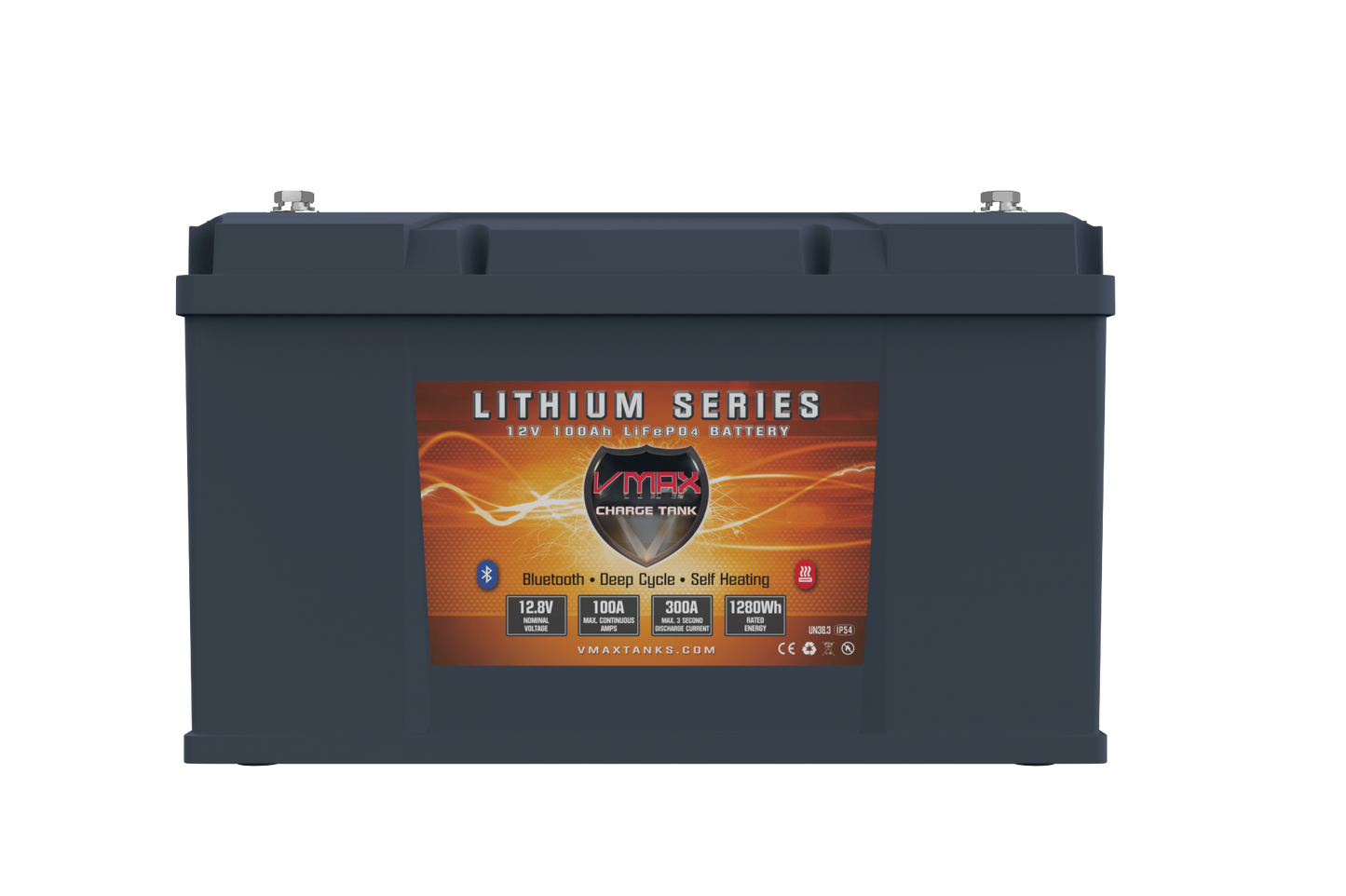

LFP12100BH LiFePO4 Li-Iron 12V 100AH Battery W/100A BMS/LED Display/BT/Heater
LFP12100BH LiFePO4 Li-Iron 12V 100AH Battery W/100A BMS/LED Display/BT/Heater
Share
Regular price
$489.99 USD
Sale price
$489.99 USD
Regular price
$649.99 USD
Unit price
per
100 in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns
LFP12100BH
Trolling
VMAX 12V 100AH HIGH PERFORMANCE LIFEPO4 BATTERY W/LED/BT/HEATER
Recommended uses:
| Nominal Voltage | 12.8V (3.2V/cell) |
| Rated Capacity (20h @ 25C) | 100AH |
| Rated Energy | 1280Wh |
| Output Voltage Range | 10.0V-14.6V |
| Charging Voltage | 14.4V - 14.6V (CC-CV) |
| Cut-Off Voltage | 10.0V |
| Max. Constant Charging Current | 100A |
| Charging Current | 10A-100A (best @ 40~60A) |
| Recommended Charger Type | CC-CV until current <5A (0.05C) |
| Max. Constant Discharge Current | 100A |
| Max. 3sec Discharge Current | 300A |
| Charging Temperature | 0C ~ 45C (+32F~ +113F) |
| Discharging Temperature | -20C ~ 55C (-4F ~ +130F) |
| Storage Temperature | 0C ~ 45C (+32F ~ +86F) @ 40%~60% SOC |
| Efficiency | >98% |
| Built-in BMS | Yes |
| Over-Charge Voltage Protection | Module: >14.8V, Cell: >3.7V |
| Over-Discharge Voltage Protection | Module: <10.0V, Cell: <2.5V |
| Over-Charge Current Protection | >110A w/1sec Delay |
| Over-Discharge Current Protection | >320A w/1sec Delay |
| Short-Circuit Protection | Yes |
| Cell Balance | Passive, 100mA |
| Over-Temperature Protection-Charging | <0C (32F), >55C (130F) |
| Over-Temperature Protection-Discharging | <-20C (-4F), >65C (150F) |
| Cycle Life @80% DOD | ~4000 @ 25A, >2000@50A, 25C (77F) |
| Design Life | ~10 Years |
| Battery Case Material | ABS |
| Dimensions L x W X H | 13" x 6.9" x 7.7" |
| Terminals | M8 Screw In (~5/16") |
| Weight | 31lb |

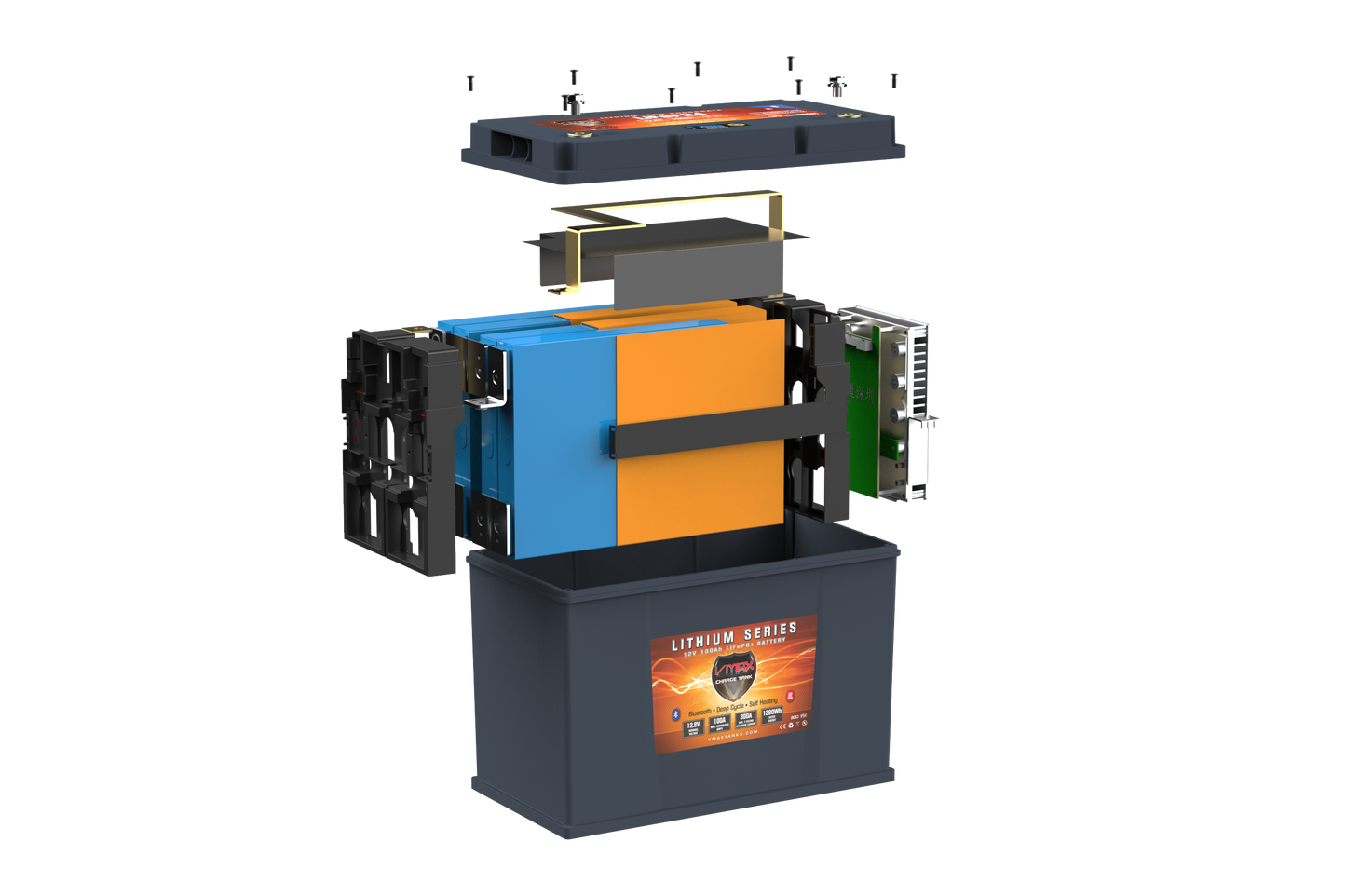

VMAX LFP battery modules consist of high-quality cells, components and a custom designed BMS giving them many advantages including:
- Built-in Bluetooth for easy monitoring of SOC, SOH and more through mobile phone APP.
- Built in self-heating pads -powered by charger- for safe charging at freezing temperatures.
- High performance long life, safe and wide temperature range LFP single cells.
- High energy density, small size, light weight, no pollution.
- High efficiency, fast charging.
- Built-in BMS offering voltage, current and temperature protection.
- Standard battery case for an easy VRLA battery replacement.
- 10 years design life, Stable performance, maintenance-free.
- Use a VMAX AGM Charger* or a LiFePO4 Smart & Microprocessor controlled charger with the recommended specs above.
- <15V alternator if used in vehicle or marine application.
- Compatible Lithium Charge controller if used in solar applications.
- Charge at Max Charging current only in situations when fastest charging rate is needed. Not recommended on an ongoing basis.
- Do not Recondition Lifepo4 batteries.
| VMAX Charger Model # |
EST. Charging Time (Hours) |
| VBC1210LFP |
10 |
| VBC1215LFP |
7 |
| VBC1220LFP |
5 |
| VBC1230LFP | 3.5 |
Motors, Solar Power Backup, UPS, Portable Devices, Medical Cart
Applications, Camping, Trailers, Boats, and most deep cycle
applications.NOT RECOMMENDED for engine start applications.Parallel wiring is acceptable for up to FOUR batteries. Series wiring is acceptable for up to FOUR batteries.
BCI Group Codes*:
Matching Termination: 31 (+ on L.H.S. & -
on R.H.S)Battery comes with carrying handles that may vary in shape and color.
* Matching is based on closest
dimensional specifications.
