SKU:OB20XTR6-235-2

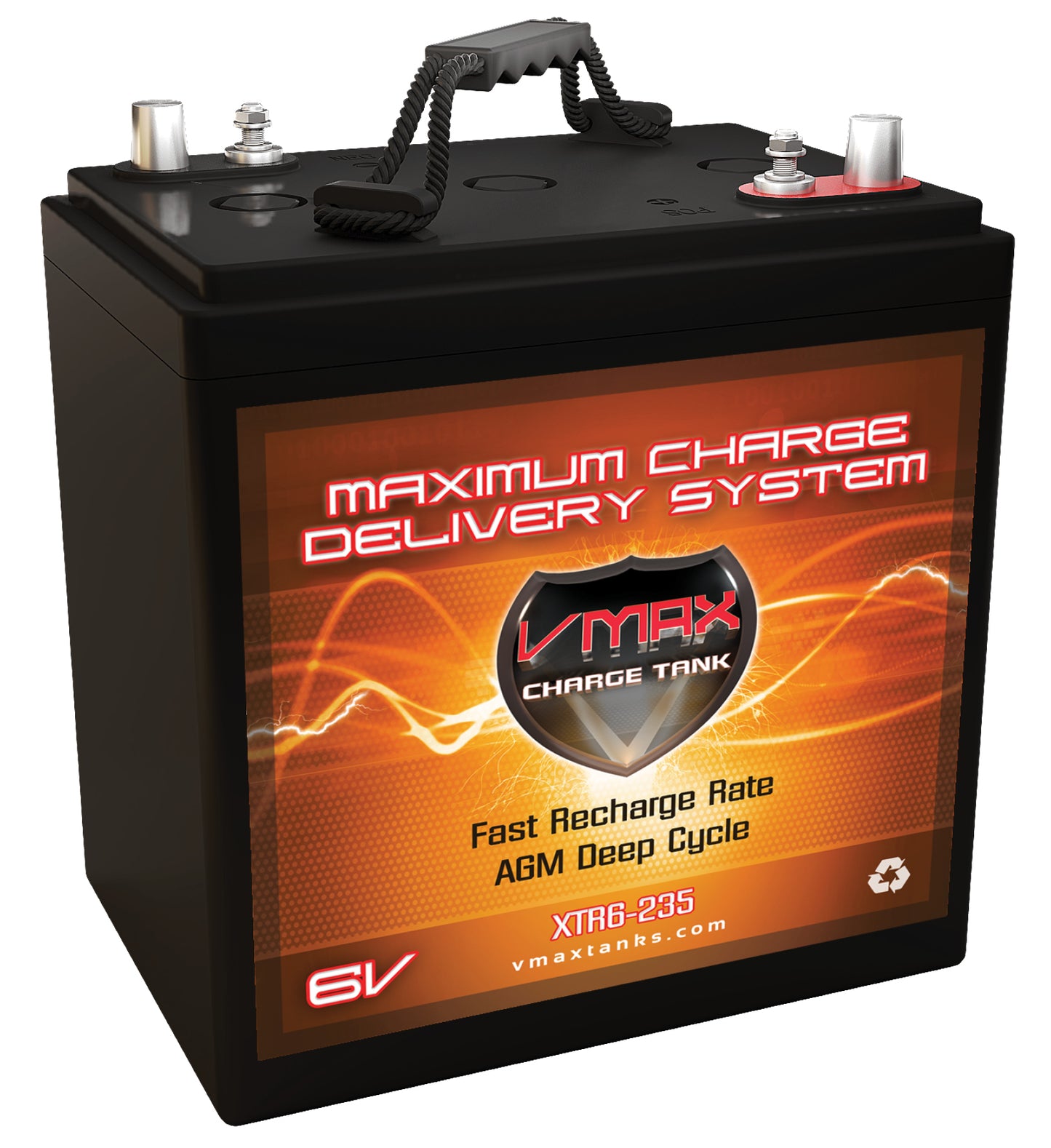

OPEN BOX XTR6-235 6V 235AH Deep Cycle, XTREME AGM Battery.
OPEN BOX XTR6-235 6V 235AH Deep Cycle, XTREME AGM Battery.
Share
Regular price
$262.49 USD
Sale price
$262.49 USD
Regular price
Unit price
per
100 in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns
OPEN BOX Condition: May have cosmetic scratches or blemishes due to shipping or
handling. May be demo batteries installed for a few days.
Thoroughly tested to
ensure a capacity of 95%-100% of brand new batteries."Times New Roman"">
Includes a 12 Month Warranty.
XTR6-235
Superior Plates with an expected life span of 10 to 12 years in float service applications.
Do not use a charger with smaller amperage than the recommended Charging
Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER
as a charger.**Total Height including terminal post.
normal">Operating Temperature Range:
BCI Group Codes*:mso-fareast-font-family:"Times New Roman"">
Matching Termination: GC2
mso-fareast-font-family:"Times New Roman"">* Matching is based on closest
dimensional specifications. Differences in hold downs and termination may
require some accommodations and/or the extension of one or both vehicle's
battery cables. mso-fareast-font-family:"Times New Roman"">
| Nominal Voltage | 20Hr Capacity | CCA |
MCA |
RC (min) |
Energy (kWH) |
Terminal Posts | Dimensions | Weight |
Charging Current* |
Charging Voltage |
Float Voltage |
| 6V | 235AH |
1100A |
1400A |
500 |
1.620 | SAE+5/16" STUD | 10.2"w x 7.1"d x 10.2"h/11.25th** | 78lb |
15A-65A |
7.2V-7.35V |
6.8V-6.9V |
| 25A @ 1.75/Cell 500Min |
|
| mso-fareast-font-family:"Times New Roman"">75A @ 1.75/Cell 130Min |
Recommended Charging Options:
-
AC
Chargers: Any Quality Brand AGM-
Smart & Microprocessor controlled- charger with the recommended specs above
can be used. Battery Charger Guide. -
"Times New Roman"">Solar Panel: 175W-450W (120W may be used if Depth of Discharge would not exceed 50%).
Do not use a charger with smaller amperage than the recommended Charging
Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER
as a charger.**Total Height including terminal post.
normal">Operating Temperature Range:
- "Times New Roman"">Discharge: -4~140F
- "Times New Roman"">Charge: 14~140F
- "Times New Roman"">Storage: -4~140F
- Cycle
use: -15mV/C - Standby
use: -10mV/C
BCI Group Codes*:mso-fareast-font-family:"Times New Roman"">
Matching Termination: GC2
mso-fareast-font-family:"Times New Roman"">* Matching is based on closest
dimensional specifications. Differences in hold downs and termination may
require some accommodations and/or the extension of one or both vehicle's
battery cables. mso-fareast-font-family:"Times New Roman"">
