SKU:LFP27-2455U
USED LFP27-2455 LiFePO4 Li-Iron 24V 55AH Deep Cycle Battery
USED LFP27-2455 LiFePO4 Li-Iron 24V 55AH Deep Cycle Battery
Share
Regular price
$274.99 USD
Sale price
$274.99 USD
Regular price
Unit price
per
Hurry, only 2 left in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns
Used
Condition: The item may show wear from use but continues to function
properly, holds a charge and passes a 100 Amp load test. Item may arrive
with damaged packaging or be repackaged. Signs of wear can include
aesthetic issues such as scratches, dents, and worn corners. The item
may have identifying markings on it or show other signs of previous
use
Condition: The item may show wear from use but continues to function
properly, holds a charge and passes a 100 Amp load test. Item may arrive
with damaged packaging or be repackaged. Signs of wear can include
aesthetic issues such as scratches, dents, and worn corners. The item
may have identifying markings on it or show other signs of previous
use
Includes a 6 Month Warranty.
LFP27-2455
Motors, Solar Power Backup, UPS, Portable Devices, Medical Cart
Applications, Camping, Trailers, Boats, and most deep cycle
applications.
NOT RECOMMENDED for engine start applications.

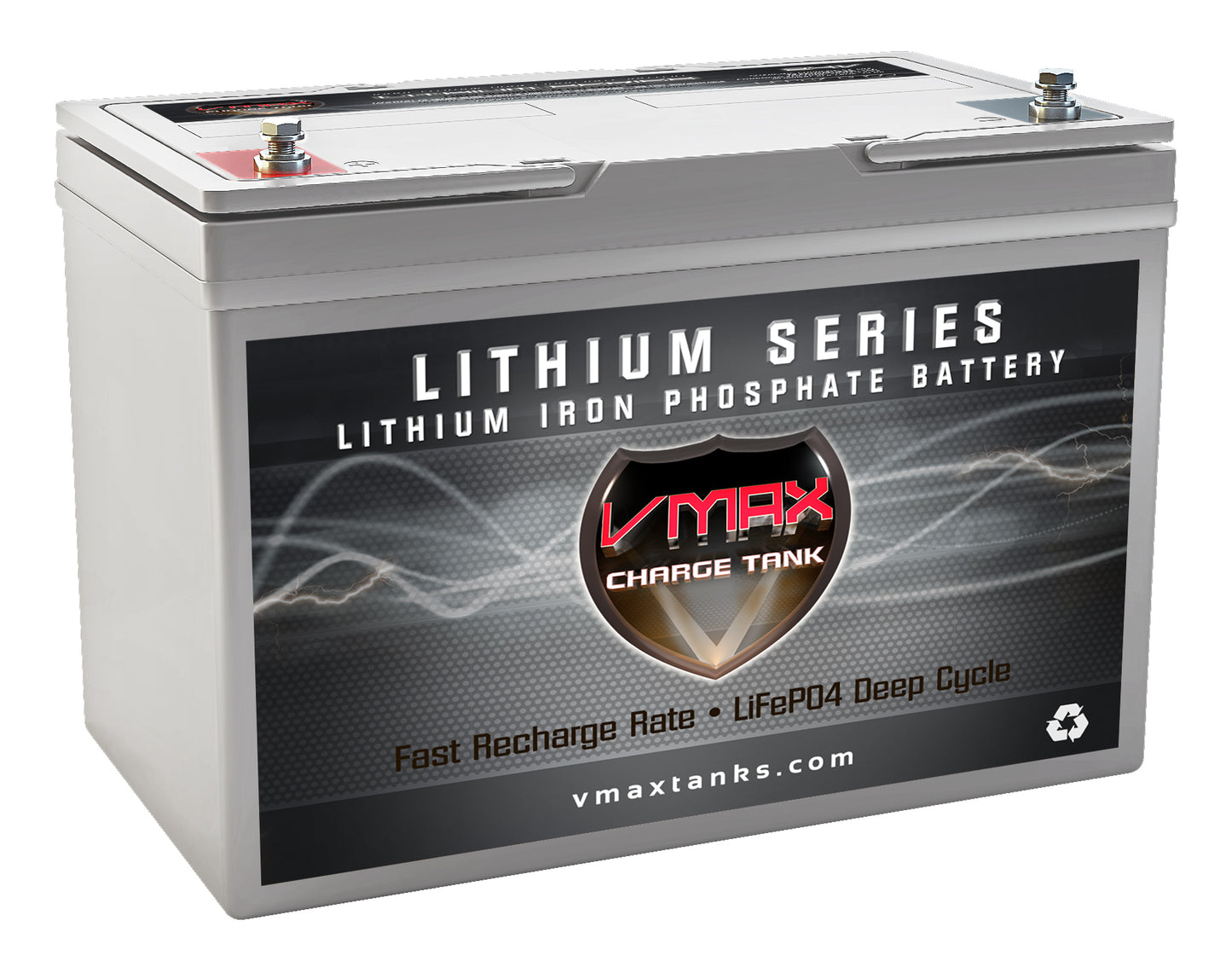

VMAX 24V 55AH HIGH PERFORMANCE DEEP CYCLE LIFEPO4 BATTERY
Recommended uses:
Trolling
| Nominal Voltage | 25.6V (3.2V/cell) |
| Rated Capacity (20h @ 25C) | 55AH |
| Rated Energy | 1408Wh |
| Output Voltage Range | 20.0V-29.2V |
| Charging Voltage | 28.8V - 29.2V (CC-CV) |
| Cut-Off Voltage | 20.0V |
| Max. Constant Charging Current | 55A |
| Recommended Charging Current | 10A-25A (best @ 10A) |
| Recommended Charger Type | CC-CV until current <1.1A (0.02C) |
| Max. Constant Discharge Current | 55A |
| Max. 3sec Discharge Current | 75A |
| Charging Temperature | 0C ~ 45C (+32F~ +113F) |
| Discharging Temperature | -20C ~ 65C (-4F ~ +150F) |
| Storage Temperature | -20C ~ 45C (-4F ~ +113F) |
| Efficiency | >98% |
| Built-in BMS | Yes |
| Over-Charge Voltage Protection | Module: >30.8V, Cell: >3.85V |
| Over-Discharge Voltage Protection | Module: <18.4V, Cell: <2.3V |
| Over-Charge Current Protection | >57A w/15sec Delay |
| Over-Discharge Current Protection | >57A w/ 15sec Delay |
| Short-Circuit Protection | >400A |
| Cell Balance | Passive, 60mA |
| Over-Temperature Protection-Charging | <-5C ( 23F) , >65C (150F) |
| Over-Temperature Protection-Discharging | <-20C (-4F), >65C (150F) |
| Cycle Life @80% DOD | ~6000 @ 10A, 25C (77F)l |
| Cycle Life @90% DOD |
>4000 @ 10A, 25C (77F) |
| Design Life | ~10 Years |
| Battery Case Material | ABS |
| Dimensions L x W X H | 12" x 6.7" x 8.2" |

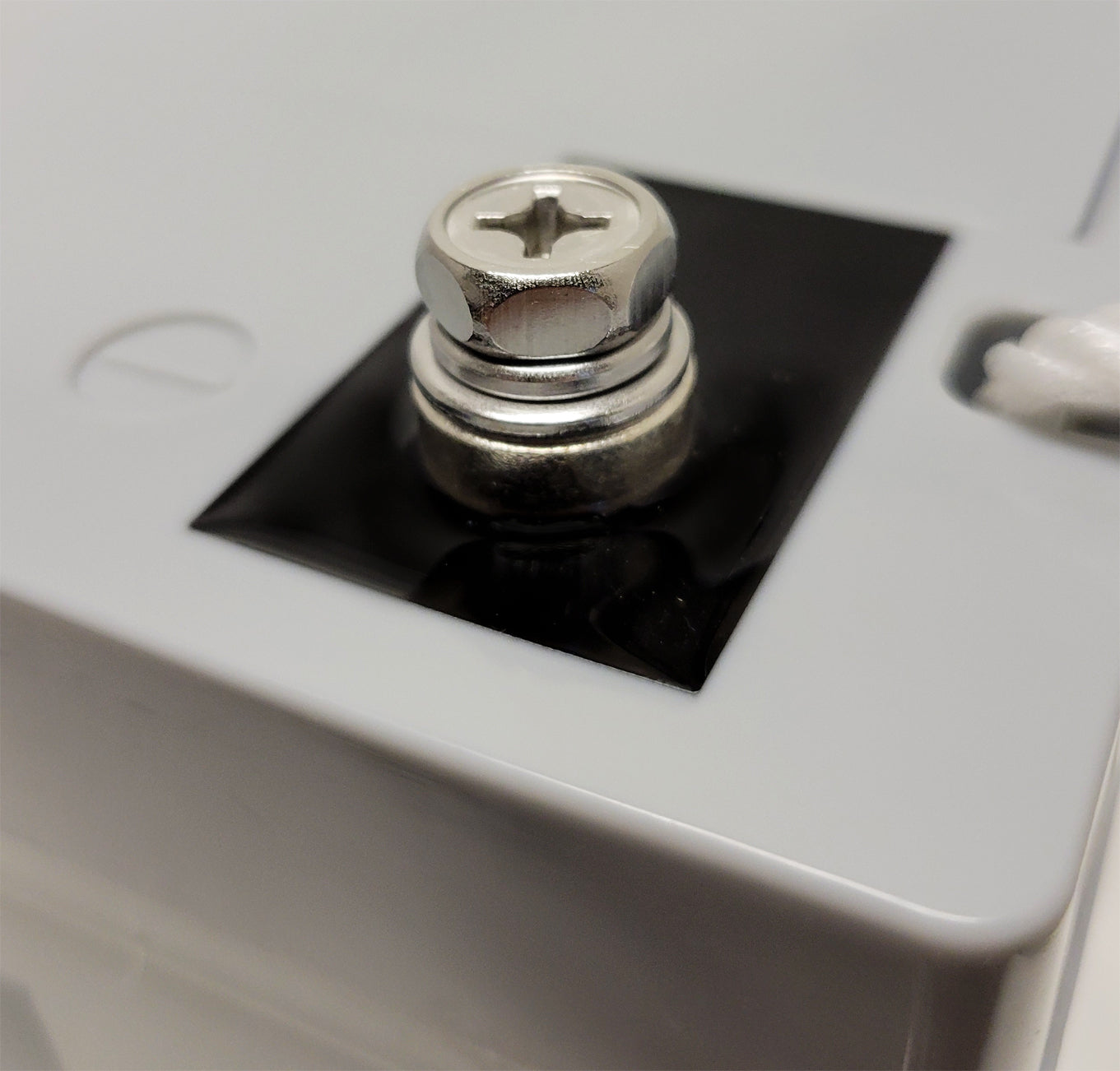

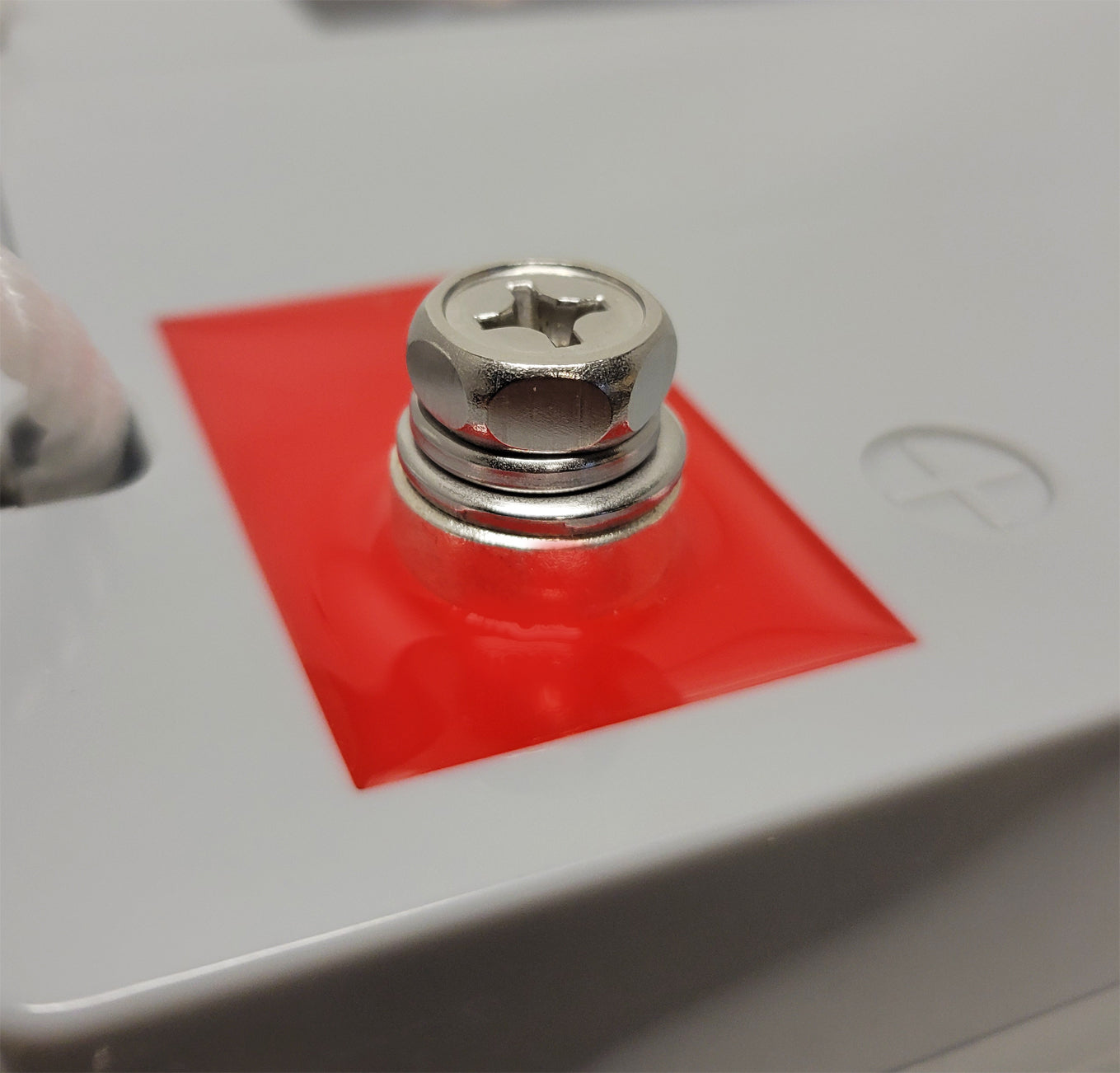

| Terminals | M8 Screw In (~5/16") |
| Weight | 25lb |
VMAX
LFP battery modules consist of high quality cells, components and a
custom designed BMS giving them many advantages including:
- High performance long life, safe and wide temperature range LFP single cells.
- High energy density, small size, light weight, no pollution.
- High efficiency, fast charging.
- Built-in BMS offering voltage, current and temperature protection.
- Standard battery case for an easy VRLA battery replacement.
- 10 years design life, Stable performance, maintenance-free.
- Use a VMAX AGM Charger* or a LiFePO4 Smart & Microprocessor controlled charger with the recommended specs above.
- Compatible Lithium Charge controller if used in solar applications.
- Charge at Max Charging current only in situations when fastest charging rate is needed. Not recommended on an ongoing basis.
- Do not Recondition Lifepo4 batteries.
| VMAX Charger Model # |
EST. Charging Time (Hours) |
| VBC2410LFP |
5.5 |
Motors, Solar Power Backup, UPS, Portable Devices, Medical Cart
Applications, Camping, Trailers, Boats, and most deep cycle
applications.
BCI Group Codes*:
Matching Termination: 27 (+ on L.H.S. & -
on R.H.S)Battery comes with carrying handles that may vary in shape and color.
* Matching is based on closest
dimensional specifications.
