SKU:OB40-XTR12-155

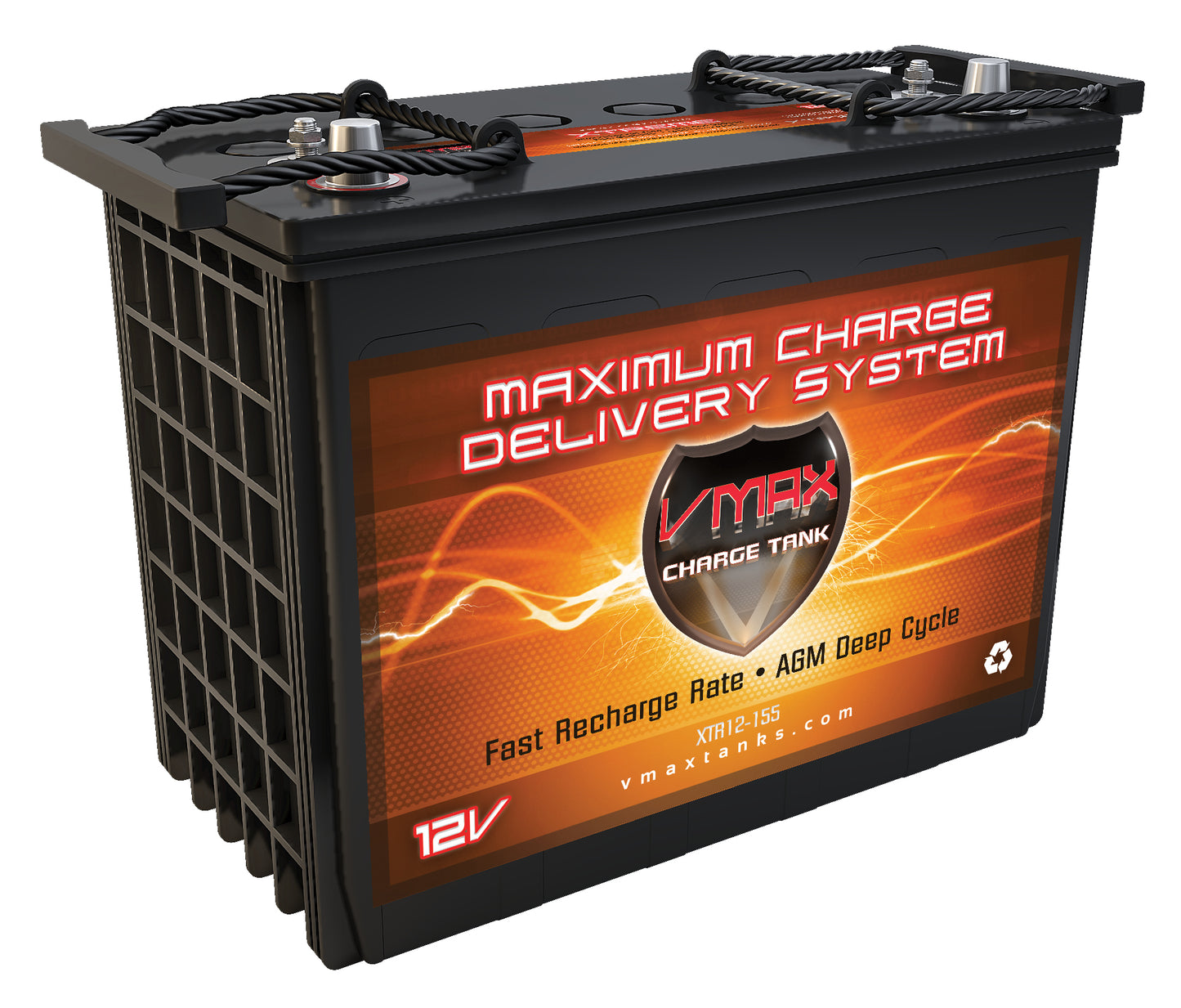

USED XTR12-155 12Volts 155AH Deep Cycle XTREME AGM Battery
USED XTR12-155 12Volts 155AH Deep Cycle XTREME AGM Battery
Share
Regular price
$239.97 USD
Sale price
$239.97 USD
Regular price
Unit price
per
100 in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns
Used
Condition: The item may show wear from use but continues to function
properly, holds a charge and passes a 100 Amp load test. Item may arrive
with damaged packaging or be repackaged. Signs of wear can include
aesthetic issues such as scratches, dents, and worn corners. The item
may have identifying markings on it or show other signs of previous
use.
Includes a 6 Month Warranty.
Superior Plates with an expected life span of 10 to 12 years in float service applications.
| Nominal Voltage | 20Hr Capacity | CCA |
MCA |
RC (min) |
Energy (kWH) |
Terminal Posts | Dimensions | Weight |
Charging Current* |
Charging Voltage |
Float Voltage |
| 12V | 155AH |
790A |
1150A |
350 |
2.1 | SAE+3/8" STUD | 12.9"w x 6.9"d x 10"h/10.8th** | 91lb |
10A-35A |
14.4V-14.9V |
13.5V-13.8V |
| 25A @ 1.75/Cell 350Min |
|
| mso-fareast-font-family:"Times New Roman"">75A @ 1.75/Cell 90Min |
mso-fareast-font-family:"Times New Roman"">mso-fareast-font-family:"Times New Roman"">Short Circuit Current: 3850A
Max Discharge Current: 1500A (5s)
mso-fareast-font-family:"Times New Roman"">mso-fareast-font-family:"Times New Roman"">Internal Resistance: 3.1 mOhms
Recommended Charging Options:
-
AC
Chargers: Any Quality Brand AGM-
Smart & Microprocessor controlled- charger with the recommended specs above
can be used. Battery Charger Guide. - "Times New Roman"">Vehicle Alternator: 14V-15V.
- "Times New Roman"">RV Converter: 14V-15V.
- "Times New Roman"">Solar Panel: 225W-500W.
- "Times New Roman"">Wind Turbine: 225W-500W.
- "Times New Roman"">Charge Controller: 20A-UP
Do not use a charger with smaller amperage than the recommended Charging
Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER
as a charger.**Total Height including terminal post.
normal">Operating Temperature Range:
- "Times New Roman"">Discharge: -4~140F
- "Times New Roman"">Charge: 14~140F
- "Times New Roman"">Storage: -4~140F
- Cycle
use: -30mV/C - Standby
use: -20mV/C
