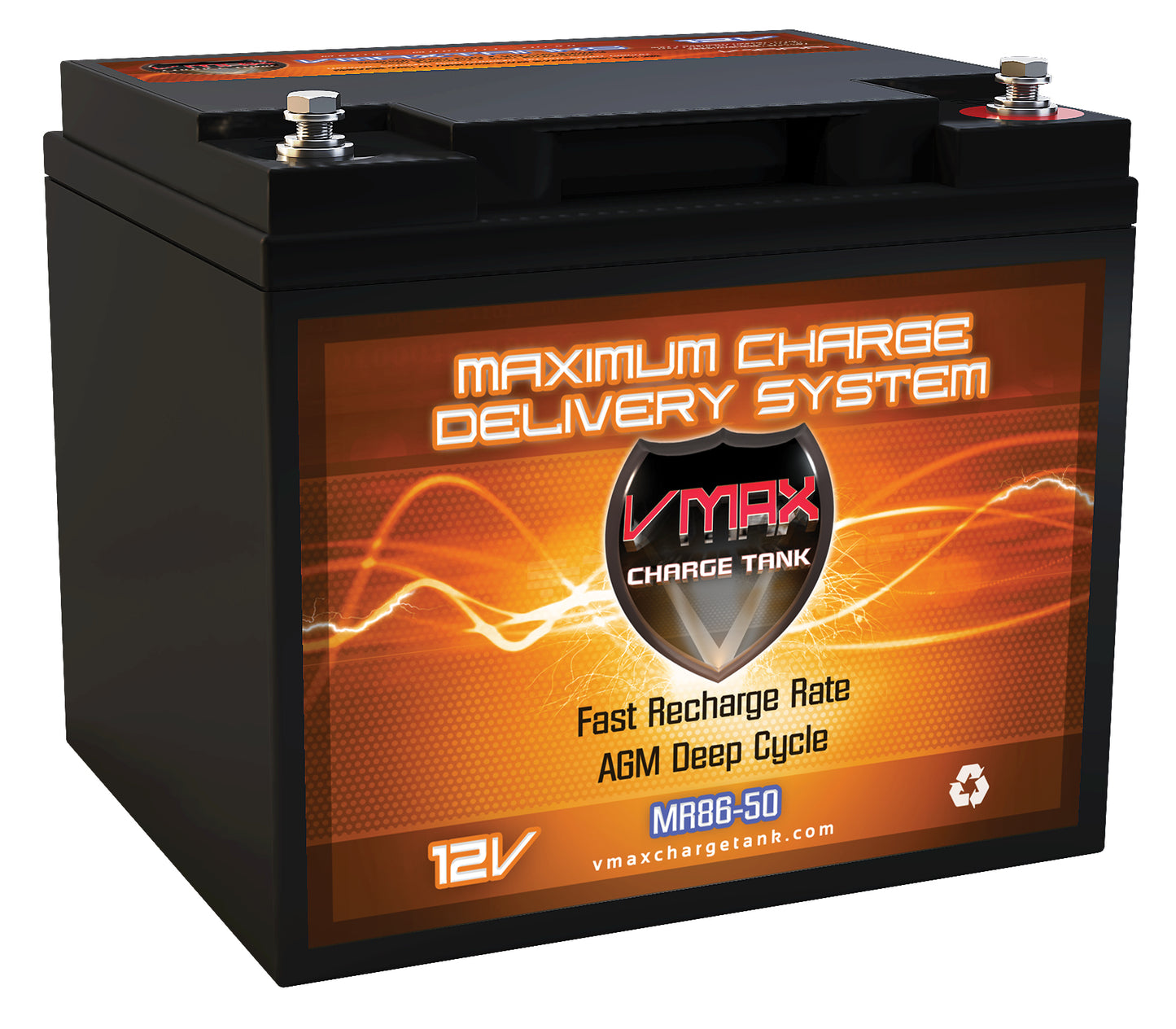

VMAX MR86-50 12V 50Ah AGM Deep Cycle Hi Performance Battery
VMAX MR86-50 12V 50Ah AGM Deep Cycle Hi Performance Battery
Share
Regular price
$149.99 USD
Sale price
$149.99 USD
Regular price
Unit price
per
100 in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns
MR86-50
| Nominal Voltage | 20Hr Capacity |
RC (min) |
PHCA |
MCA | Terminal Posts | Dimensions | Weight |
Charging Current* |
Charging Voltage |
Float Voltage |
| 12V | 50AH |
100 |
840A |
450A |
6mm (included) |
7.8"w x 6.6"d x 6.7"h(6.69"th)** | 32lb |
3A-15A |
14.4-14.9V |
13.5V-13.8V |
Recommended Charging Options:
* Warning:
Do not use a charger with smaller amperage than the recommended Charging
Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER
as a charger.
**Total Height including terminal post.
*** 3sec Pulse Hot Cranking Amps.
Operating Temperature Range:
BCI Group Codes*:
Matching Termination : 21R (- on L.H.S. & + on R.H.S).
*
Matching is based on closest dimensional specifications. Differences in
hold downs and termination may require some accommodations and/or the
extension of one or both vehicle's battery cables.
- AC
Chargers: Any Quality Brand AGM-
Smart & Microprocessor controlled- charger with the recommended specs above
can be used. - Alternator: 14V-15V.
- RV Converter: 14V-15V.
- Solar Panel: 60W-225W.
- Wind Turbine: 60W-225W.
- Charge Controller: 10A-UP.
Do not use a charger with smaller amperage than the recommended Charging
Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER
as a charger.
**Total Height including terminal post.
*** 3sec Pulse Hot Cranking Amps.
Operating Temperature Range:
- Discharge: -4~140F
- Charge: 14~140F
- Storage: -4~140F
- Cycle use:
-30mV/C - Standby
use: -20mV/C
BCI Group Codes*:
Matching Termination : 21R (- on L.H.S. & + on R.H.S).
*
Matching is based on closest dimensional specifications. Differences in
hold downs and termination may require some accommodations and/or the
extension of one or both vehicle's battery cables.
