SKU:V20-600
Regular price
$77.98 USD
Sale price
$77.98 USD
Regular price
$82.99 USD
Unit price
per
463 in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns

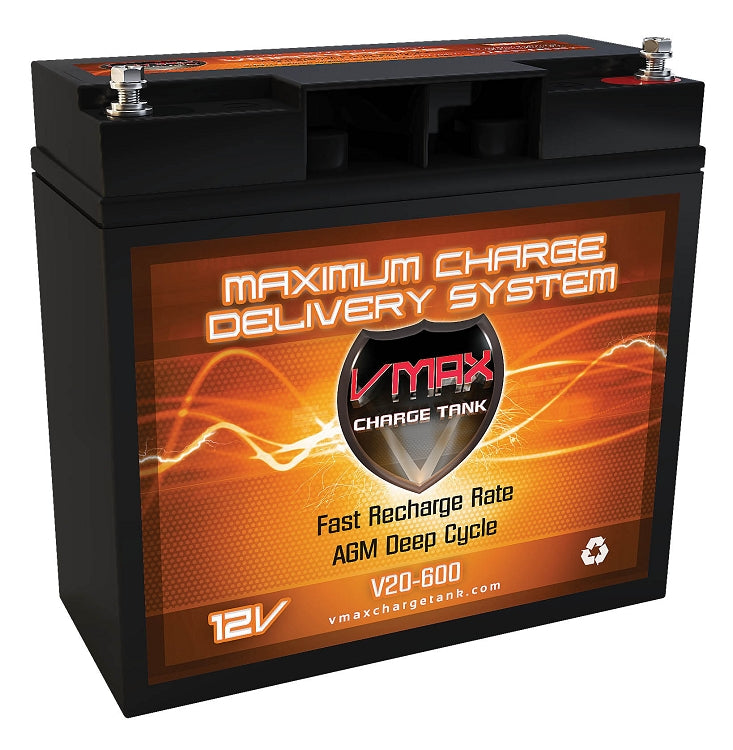

V20-600
| Nominal Voltage | 20Hr Capacity |
RC (min) |
CCA | MCA |
Terminal Posts | Dimensions | Weight |
Charging Current* |
Charging Voltage |
Float Voltage |
| 12V | 20AH |
40 |
190 | 240 | 6mm (included) |
7"w x 3"d x 6.6"h | 13lb |
1.5A-7A |
14.4-14.9V |
13.5V-13.8V |
Recommended Charging Options:
-
AC
Chargers: Any Quality Brand AGM-
Smart & Microprocessor controlled- charger with the recommended specs above
can be used. Battery Charger Guide. - Alternator: 14V-15V.
- RV Converter: 14V-15V.
- Solar Panel: 35W-110W.
- Wind Turbine: 35W-110W.
- Charge Controller: 2A-30A
Do not use a charger with smaller amperage than the recommended Charging
Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER
as a charger.Operating Temperature Range:
- Discharge: -4~140F
- Charge: 14~140F
- Storage: -4~140F
Temperature Compensation:
- Cycle use:
-30mV/C - Standby
use: -20mV/C
BCI Group Codes*:
Matching Termination: 1/2 U1 (- on L.H.S. & +
on R.H.S)
* Matching is based on closest
dimensional specifications. Differences in hold downs and termination may
require some accommodations and/or the extension of one or both vehicle's
battery cables.
