SKU:XTR27-110

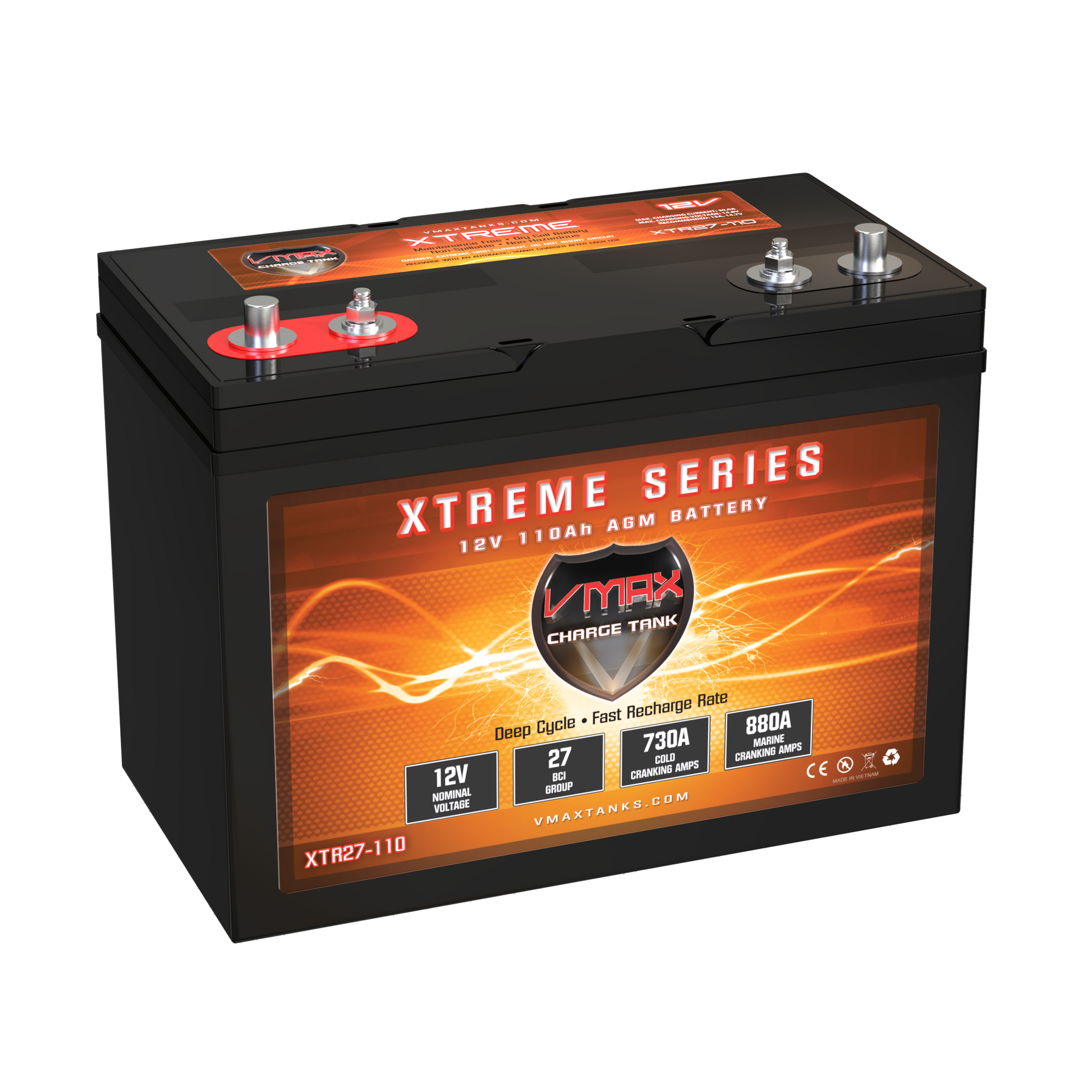

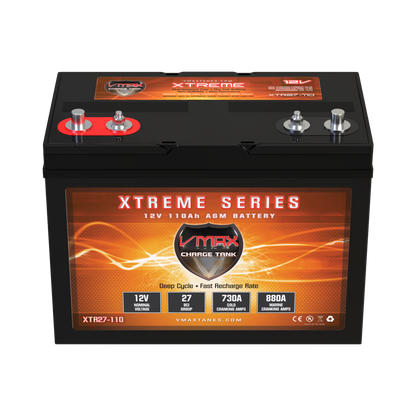

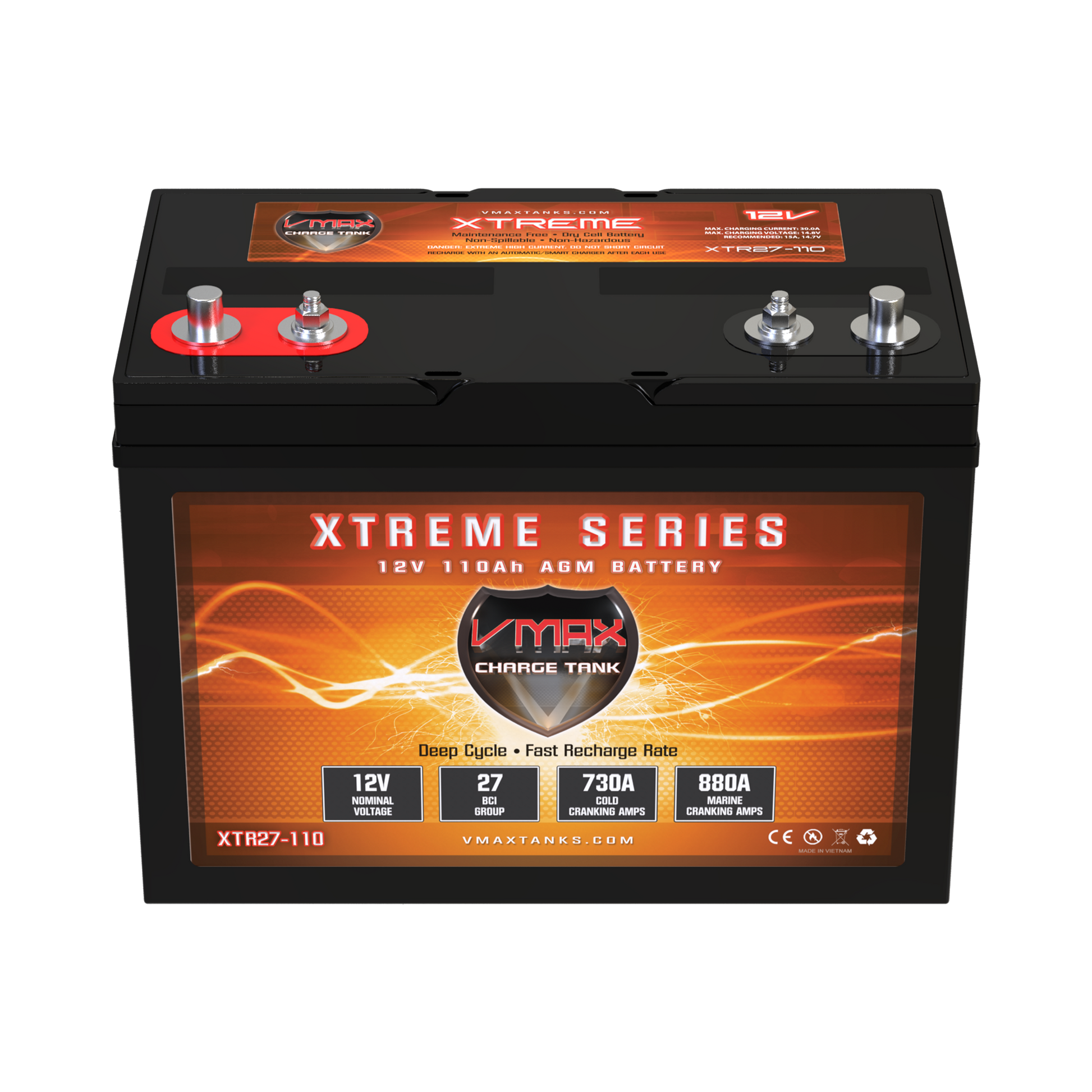

VMAXTANKS XTR27-110 12V 110Ah AGM Deep Cycle Battery

Name: VMAXTANKS XTR27-110 12V 110Ah AGM Deep Cycle Battery
Brand: VMAX USA
SKU: XTR27-110
Price: 299.99 USD
Availability: InStock

$299.99 USD

Sale Sold out

Free Shipping

498 in stock

We accept

Quantity Discounts
Fast & Free Shipping
Secure Checkout
Easy Returns

Vmaxtanks XTR27-110 AGM Deep Cycle

12V 110Ah Extreme Series Battery

The Vmaxtanks XTR27-110 AGM 12V 110Ah deep cycle battery delivers reliable, long-lasting power for lifts, industrial machinery, marine, RV and EV, and solar applications. Featuring dual post terminals and superior vibration resistance, it offers efficient performance in tough environments. Known for its durability and ability to withstand extreme conditions, this AGM battery ensures consistent energy delivery and is ideal for high-demand systems. Customers appreciate its robust construction and dependable operation, making it a top choice for deep-cycle power solutions.

1-Year Manufacturer's Replacement Warranty.

Connect in Series or Parallel

BCI GROUP: 27

Specifications:

Nominal Voltage: 12V
20-Hour Capacity: 110AH
Cold Cranking Amps (CCA): 660A
Marine Cranking Amps (MCA): 880A
Reserve Capacity (RC): 220 minutes
Energy: 1.46 kWh
Terminal Posts: SAE + 5/16" Stud
Dimensions (W x D x H): 12" x 6.6" x 8.5" (9.2" total height including terminal post)
Weight: 67 lbs
Charging Current: 10A–35A
Charging Voltage: 14.6V–14.9V
Float Voltage: 13.5V–13.8V
Short Circuit Current: 2050A
Maximum Discharge Current: 1000A (5 seconds)
Internal Resistance: 3.5 mΩ
Operating Temperature Range:
- Discharge: -4°F to 140°F
- Charge: 32°F to 120°F
- Storage: -4°F to 140°F
Temperature Compensation:
- Cycle Use: -30mV/°C
- Standby Use: -20mV/°C

Max Discharge Current: 1000A (5s)
Internal Resistance: 3.5 mOhms
Short Circuit Current: 2050A

Recommended Charging Options:

AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used.
Vehicle Alternator: 14V-15V.
RV Converter: 14V-15V.
Solar Panel: 150W-400W.
Wind Turbine: 150W-400W.
Charge Controller: 15A-UP

Warning: Do not use a charger with a smaller amperage than the recommended Charging Current shown above. Small maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger

Operating Temperature Range

Discharge: -4~140F
Charge: 32~120F
Storage: -4~140F

Temperature Compensation

Cycle use: -30mV/C
Standby use: -20mV/C

All VMAXTANKS AGM Batteries Feature:

Sealed Construction
The unique construction and sealing techniques of VMAX tanks guarantee leak-proof operation in any position with no adverse effect on capacity or service life. VMAX tanks are classified as non-spillable, non-hazardous, dry batteries, making them NOT restricted for Surface, maritime, or Air Transport.
Electrolyte Suspension system
VMAX tanks utilize an electrolyte suspension system consisting of AGM (Absorbed Glass Matt) of high porosity that totally absorbs and contains the electrolyte. No silica gels or other contaminants are used.
Maintenance Free Operation
During the float's service life, there is no need to check the electrolyte's specific gravity or add water to VMAXTANKS™.
Reliable, Rugged Construction
The extra strong ABS container reduces case bulging and plate warping, ensuring long life and high performance.
Low-Pressure Valve Regulated System
All VMAXTANKS™ are equipped with safety release valves, designed to operate between 0.98 and 196.1kpa and automatically reseal. Hence, there is never an excessive accumulation of gas within the battery.
Heavy Duty Military Grade Grids
Heavy-duty lead tin alloy grids provide an extra margin of performance and service life in either float or cyclic applications, even after repeated over-discharges.
Cyclic Service Life
VMAX is known to deliver one of the highest numbers of discharge/recharge cycles.
Float Service Life
VMAXTANKS™ has an expected life span of 8 to 10 years in float service applications.
Low Self Discharge
The new VMAX tanks' self-discharge rate at room temperature is approximately 1-2% of rated capacity per month (compared to 2-3% for most other AGM batteries and 15-20% for Lead-Acid batteries).
Operating Temperature
VMAXTANKS™ may be operated over a broad range of ambient temperatures.
Ultra Low Resistance
VMAXTANKS™ Ultra Low Resistance makes it up to 99% efficient (compared to 85-95% as in Lead Acid Batteries and 97% in most other GEL and AGM batteries).
Higher Power Density
A special assembly technology is used to enhance power density to a considerable level.
