SKU:XTR27-110

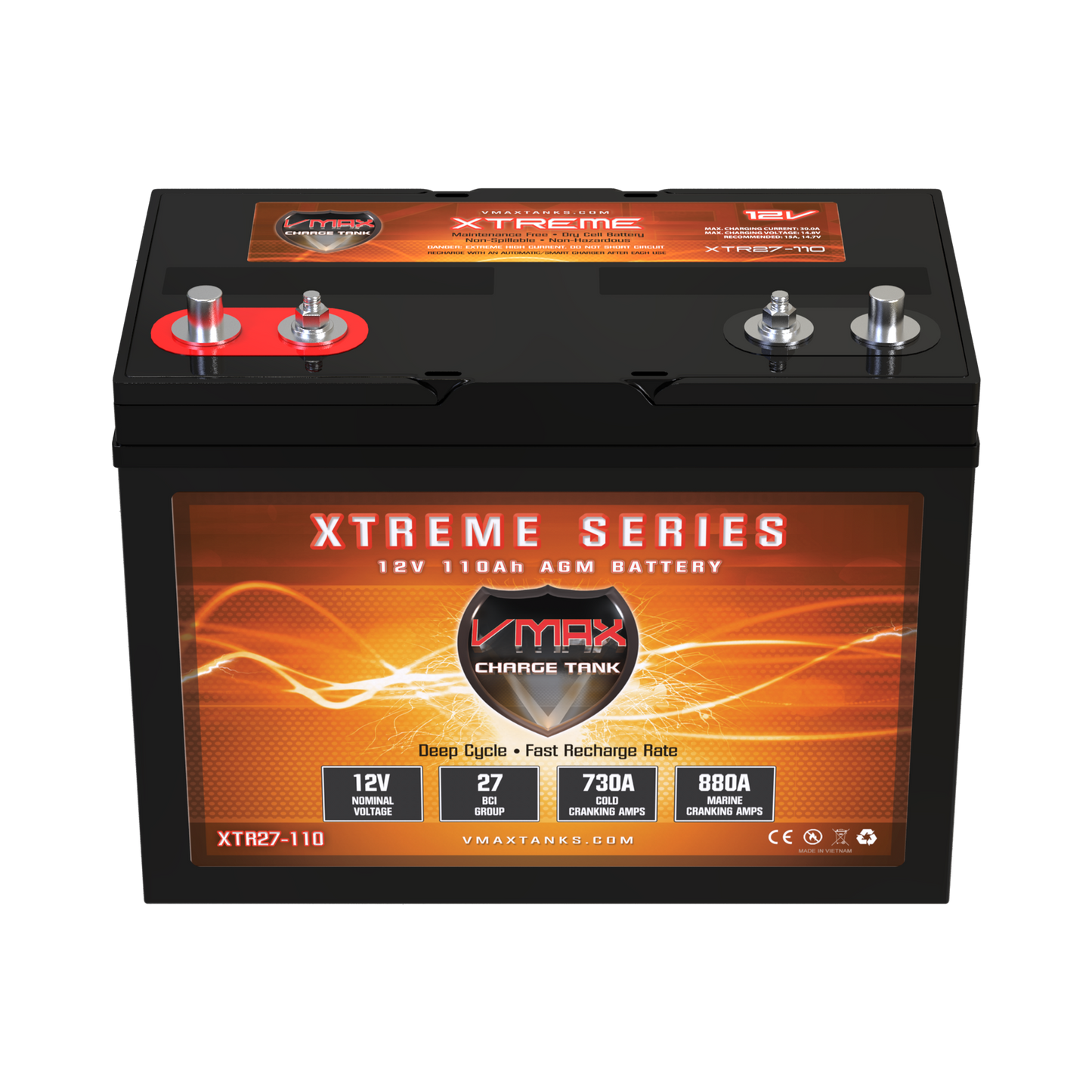

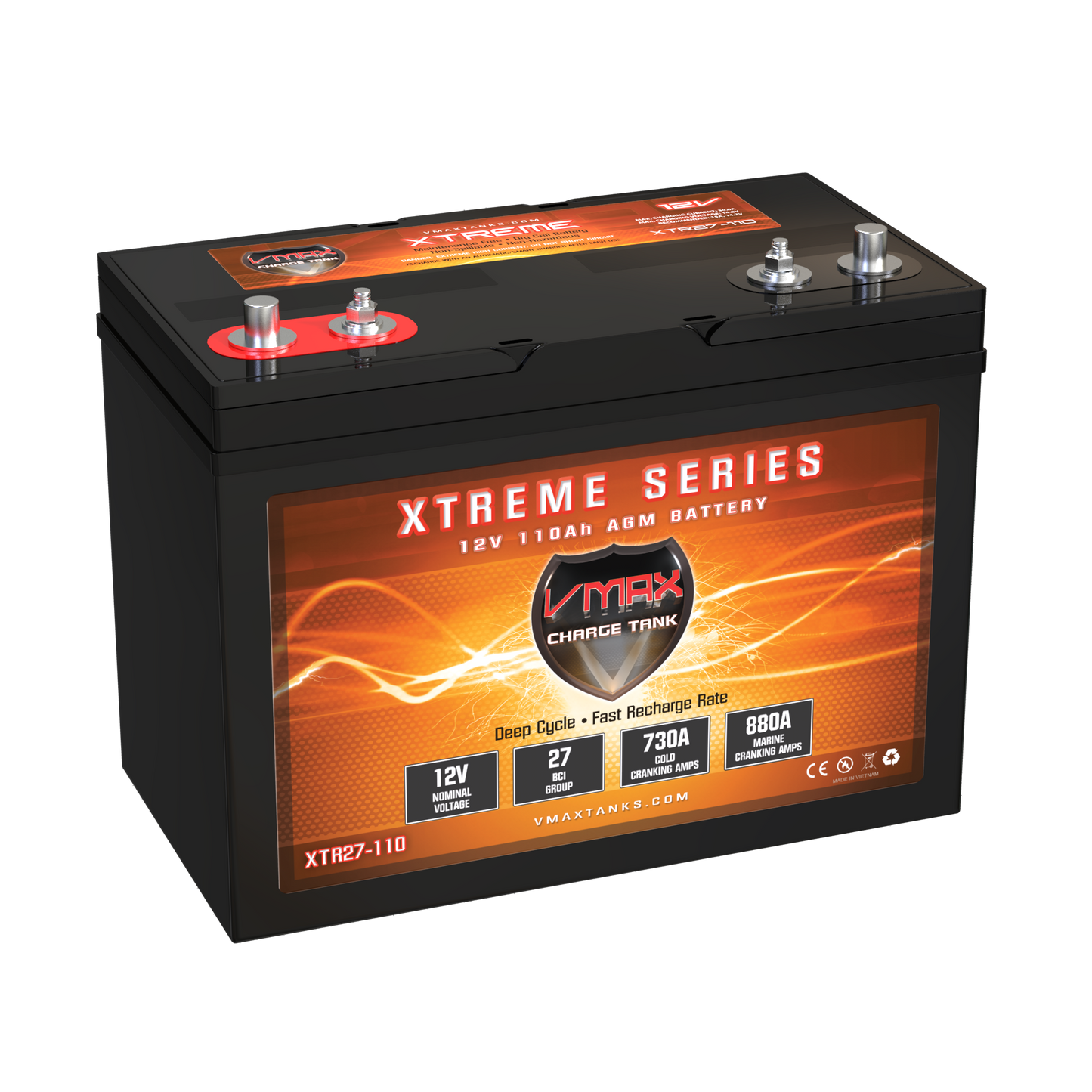

VMAX XTR27-110 12V 110AH DEEP CYCLE, XTREME AGM BATTERY
VMAX XTR27-110 12V 110AH DEEP CYCLE, XTREME AGM BATTERY
Share
Regular price
$289.99 USD
Sale price
$289.99 USD
Regular price
Unit price
per
100 in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns
XTR27-110
Superior Plates with an expected life span of 10 to 12 years in float service applications.
Short Circuit Current: 2050A
Max Discharge Current: 850A (5s)
Internal Resistance: 3.5 mOhms
Recommended Charging Options:
Do not use a charger with smaller amperage than the recommended Charging
Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER
as a charger.**Total Height including terminal post.
normal">Operating Temperature Range:
normal">Temperature Compensation:
normal">UPC:030955763576normal">BCI Group Codes*:

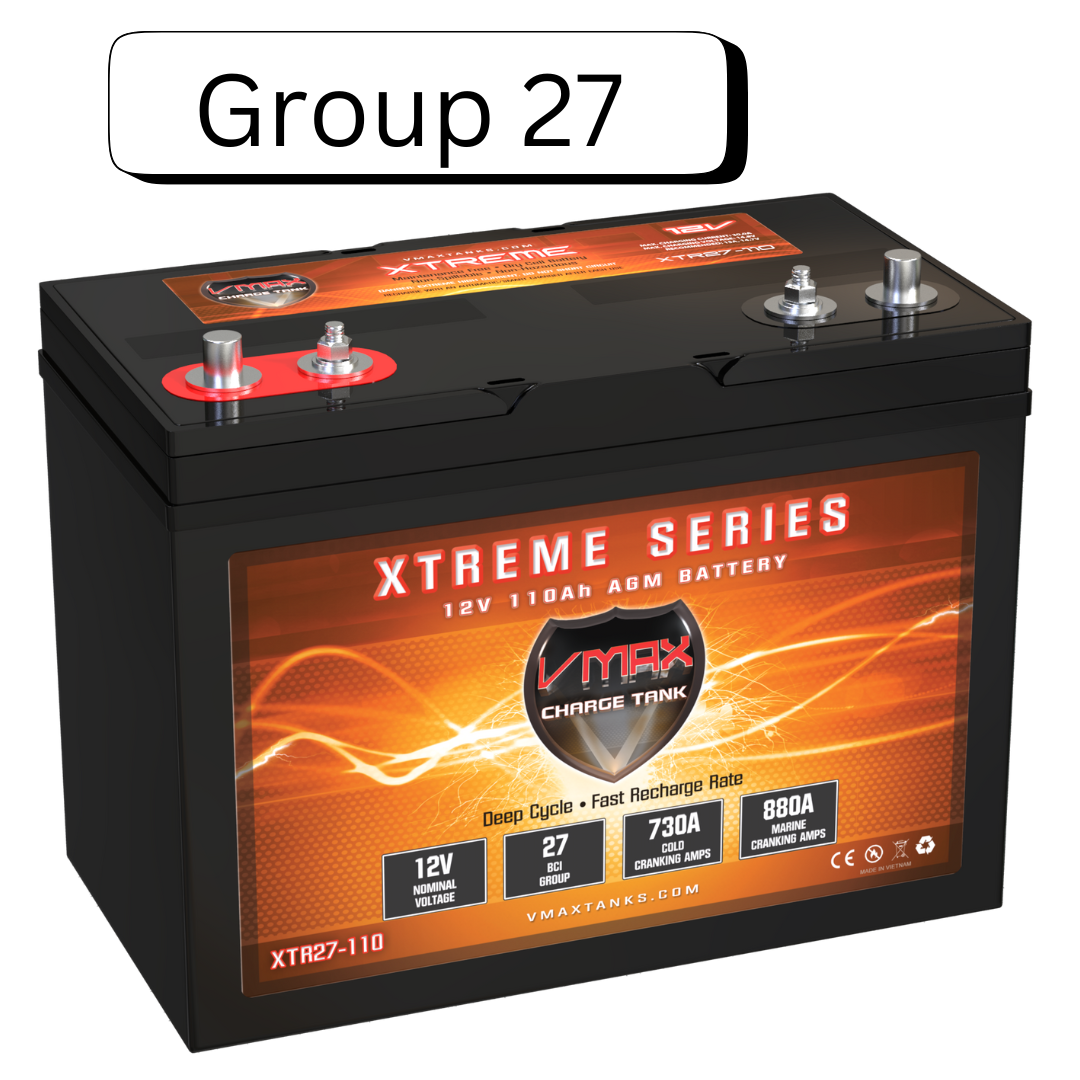

Matching Termination: 27 (+ on L.H.S. & -
on R.H.S)
* Matching is based on closest
dimensional specifications. Differences in hold downs and termination may
require some accommodations and/or the extension of one or both vehicle's
battery cables.
Superior Plates with an expected life span of 10 to 12 years in float service applications.
| Nominal Voltage | 20Hr Capacity | CCA |
MCA |
RC (min) |
Energy (kWH) |
Terminal Posts | Dimensions | Weight |
Charging Current* |
Charging Voltage |
Float Voltage |
| 12V | 110AH |
660A |
880A |
220 |
1.46 |
SAE+3/8" STUD | 12"w x 6.5"d x 8.25"h/9.5th** | 68lb |
10A-35A |
14.4V-14.9V |
13.5V-13.8V |
| 25A @ 1.75/Cell 220Min |
|
| 75A @ 1.75/Cell 60Min |
Short Circuit Current: 2050A
Max Discharge Current: 850A (5s)
Internal Resistance: 3.5 mOhms
Recommended Charging Options:
- AC
Chargers: Any Quality Brand AGM-
Smart & Microprocessor controlled- charger with the recommended specs above
can be used. Battery Charger Guide. - Vehicle Alternator: 14V-15V.
- RV Converter: 14V-15V.
- Solar Panel: 150W-400W.
- Wind Turbine: 150W-400W.
- Charge Controller: 15A-UP
Do not use a charger with smaller amperage than the recommended Charging
Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER
as a charger.**Total Height including terminal post.
normal">Operating Temperature Range:
- Discharge: -4~140F
- Charge: 14~140F
- Storage: -4~140F
normal">Temperature Compensation:
- Cycle
use: -30mV/C - Standby
use: -20mV/C
normal">UPC:030955763576normal">BCI Group Codes*:
Matching Termination: 27 (+ on L.H.S. & -
on R.H.S)
* Matching is based on closest
dimensional specifications. Differences in hold downs and termination may
require some accommodations and/or the extension of one or both vehicle's
battery cables.
