SKU:XTR8D-310

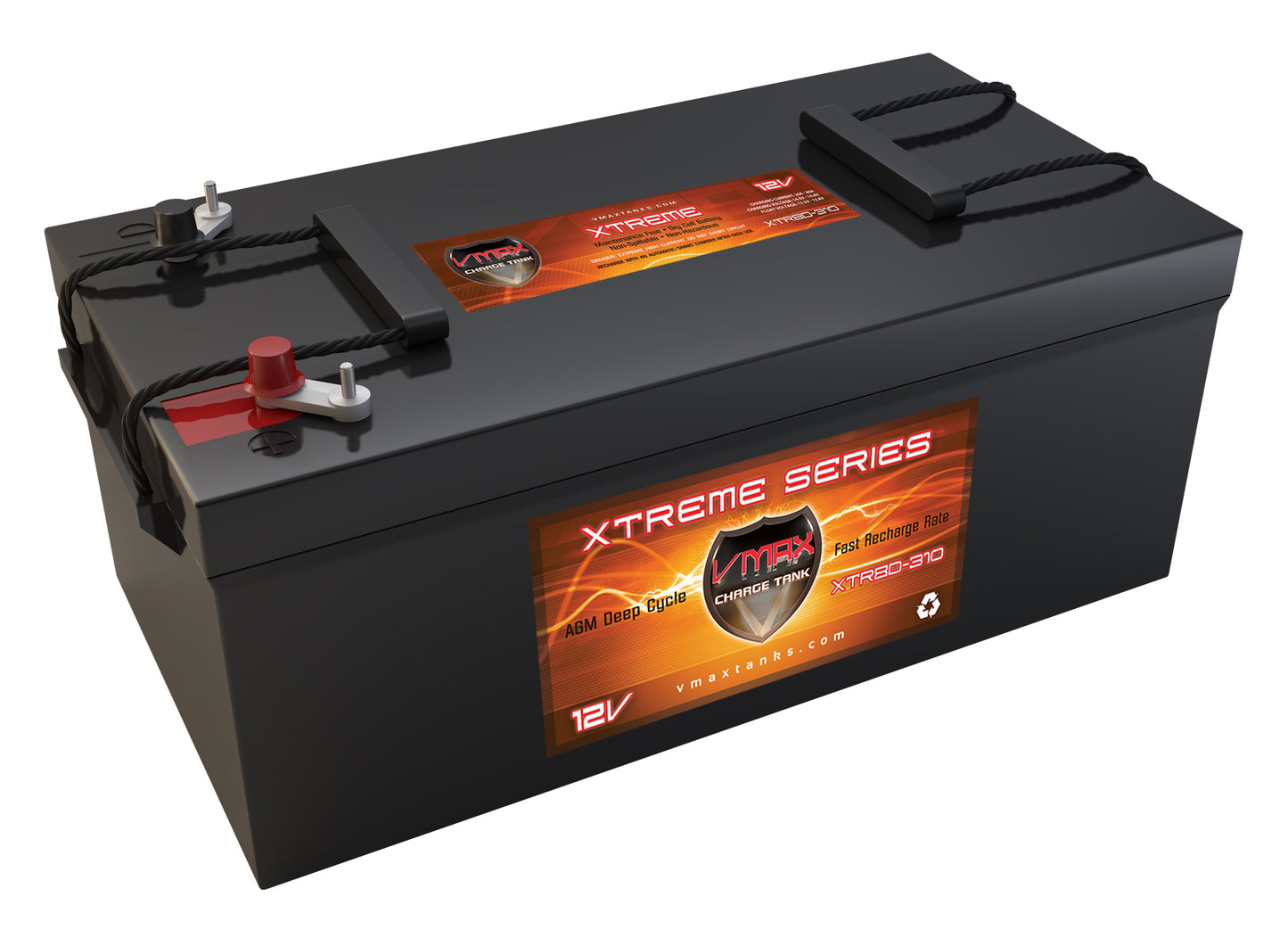

VMAX XTR8D-310 12V 310AH Deep Cycle, XTREME AGM Battery.
VMAX XTR8D-310 12V 310AH Deep Cycle, XTREME AGM Battery.
Share
Regular price
$699.99 USD
Sale price
$699.99 USD
Regular price
Unit price
per
36 in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns
XTR8D-310
Superior Plates with an expected life span of 10 to 12 years in float service applications.
Short Circuit Current: 5000A
Max Discharge Current: 2400A (5s)
Internal Resistance: 2.5mOhms
Recommended Charging Options:
Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger.**Total Height including terminal post.
Operating Temperature Range:
Superior Plates with an expected life span of 10 to 12 years in float service applications.
| Nominal Voltage | 20Hr Capacity | CCA |
MCA |
RC (min) |
Energy (kWH) |
Terminal Posts | Dimensions | Weight |
Charging Current* |
Charging Voltage |
Float Voltage |
| 12V |
310AH |
1200A |
1550A |
690 |
4.1 |
SAE+3/8" STUD | 20.8"w X 10.6"d x 8.7"h/9.5th** | 170lb |
20A-80A |
14.4V-14.7V |
13.5V-13.8V |
| 25A @ 1.75/Cell 690Min |
|
75A @ 1.75/Cell 200Min |
Max Discharge Current: 2400A (5s)
Internal Resistance: 2.5mOhms
Recommended Charging Options:
- AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used.
- Vehicle Alternator: 14V-15V.
- RV Converter: 14V-15V.
- Solar Panel: 500-1500W.
- Wind Turbine: 500W-1500W.
- Charge Controller: 50A-UP
Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger.**Total Height including terminal post.
Operating Temperature Range:
- Discharge: -4~140F
- Charge: 14~140F
- Storage: -4~140F
- Cycle use: -30mV/C
- Standby use: -20mV/C
