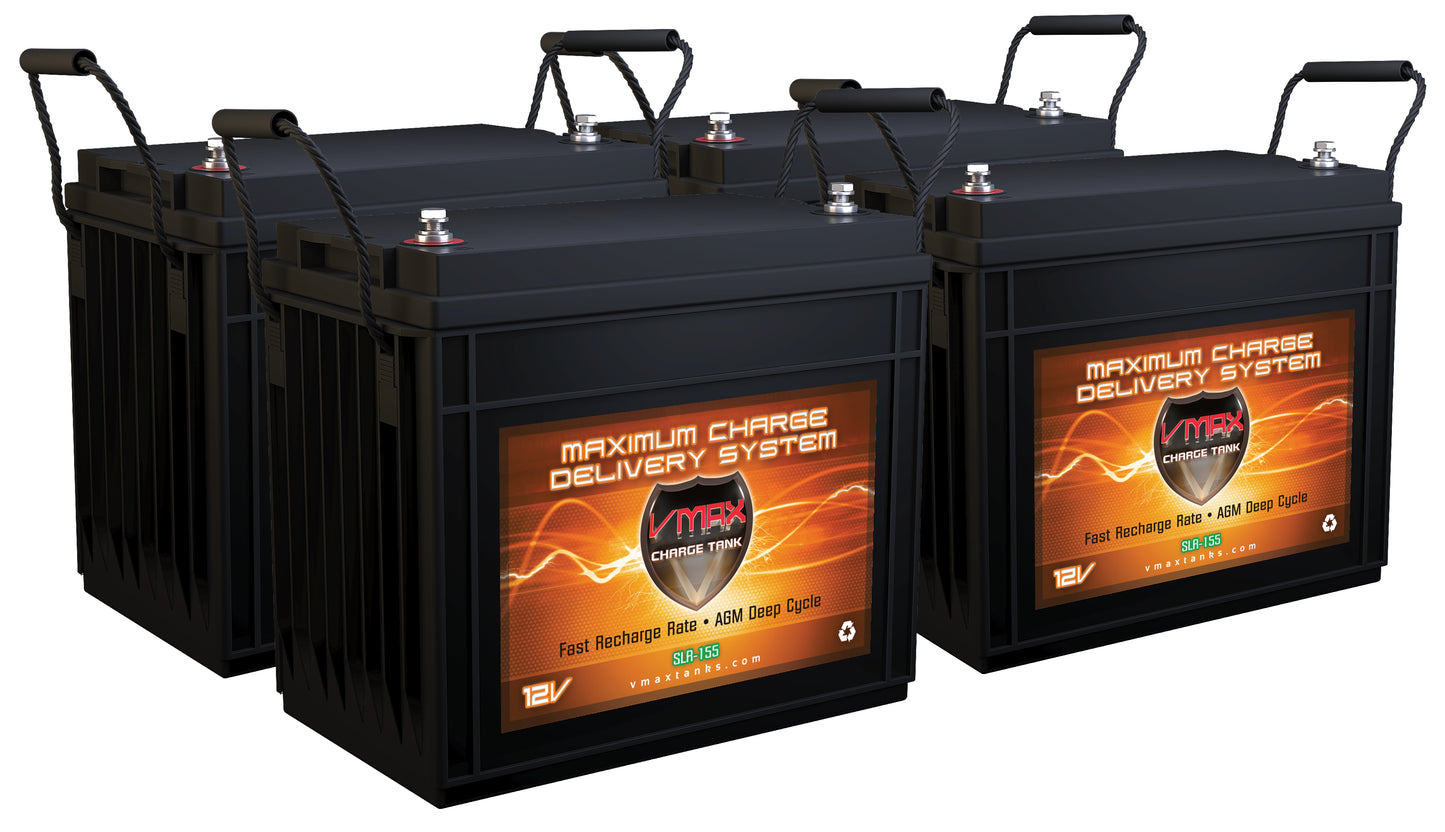

The VMAX SLR155 12V 155AH (each) Deep Cycle Solar AGM Battery is designed for high performance. Its max discharge current is 1000A, and the recommended charging current is 45A. Ideal for solar, RV, and wind turbine systems, it offers reliable power with a wide operating temperature range. With a BCI Group GC12 size and robust internal resistance, this battery ensures long-lasting energy storage and efficiency in demanding applications.
1-Year Manufacturer's Replacement Warranty.
Connect (4) in series for 48V
BCI GROUP: GC12
Specifications:
| Nominal Voltage |
20Hr Capacity |
RC (min)
|
Energy
(kWH)
|
Terminal Posts |
Dimensions |
Weight
|
Charging Current*
|
Charging Voltage
|
Float Voltage
|
| 12V |
155AH
|
350
|
2.100 |
M8 (8mm*1.25)
|
13.5"w x 6.8"d x 11.3"h |
90lb
|
10A-35A
|
14.4-14.9V
|
13.5V-13.8V
|
25A @ 1.75/Cell 350Min
|
|
|
75A @ 1.75/Cell 90Min
|
|
Short Circuit Current: 2500A
Max Discharge Current: 1000A (5s)
Max Charging Current: 45A
Internal Resistance: 3.8 mOhms
Recommended Charging Options:
- AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used.
- Vehicle Alternator: 14V-15V.
- RV Converter: 14V-15V.
-
Solar Panel: 225W-500W (150W may be used if the Depth of Discharge would not exceed 50%).
- Wind Turbine: 225W-500W.
- Charge Controller: 20A-UP.
-
Warning: Do not use a charger with a smaller amperage than the recommended Charging Current shown above.
- Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger.
Operating Temperature Range:
- Discharge: -4~140F
- Charge: 14~140F
- Storage: -4~140F
Temperature Compensation:
- Cycle use: -30mV/C
- Standby use: -20mV/C
