GIANDEL Pure Sine Wave Power Inverter 2200W

Pure Sine Wave Power Inverter

• Provides 2200 watts of true pure sine wave DC 12V to AC 120V continuous power
• Equipped with 2 AC outlets and 1 USB port (2.4A)
• More powerful than a 2000W power inverter
• Ideal for appliances under 2200W
• ETL listed and complies with UL458 standard

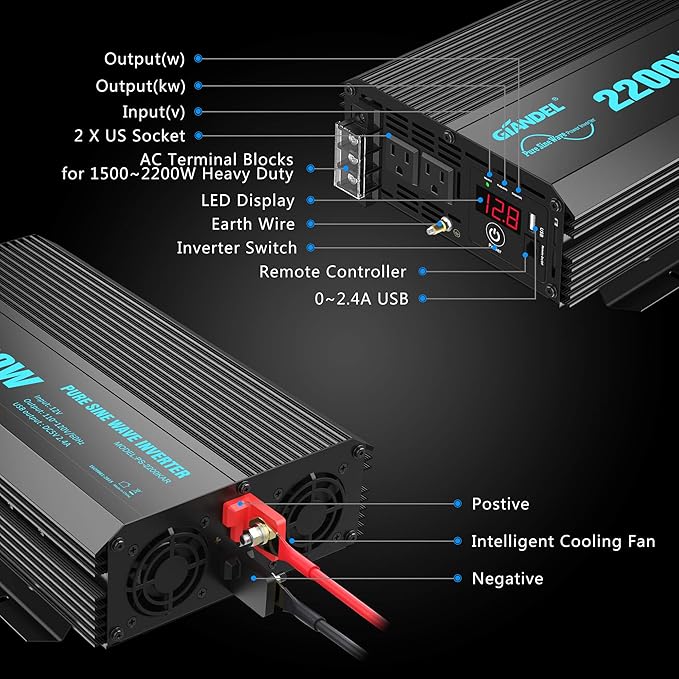

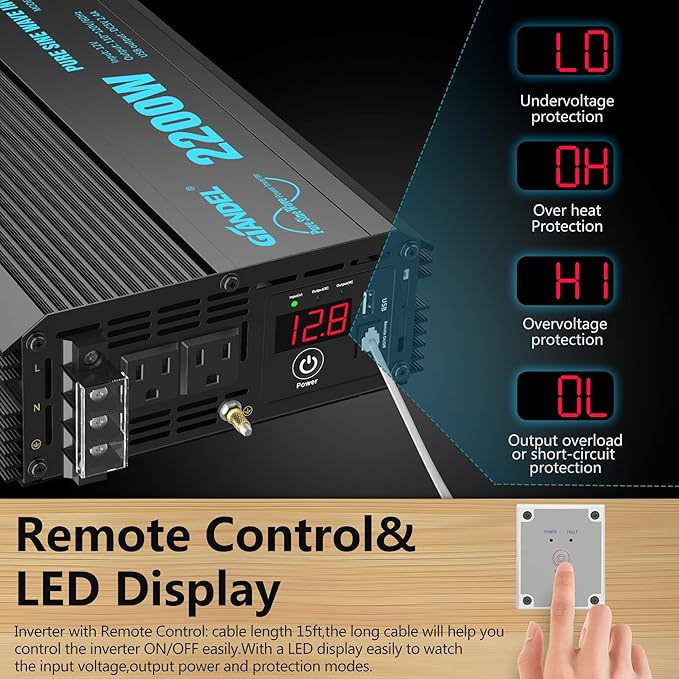

Remote Control & LED Display

• Comes with a remote control (15 ft cable) for easy ON/OFF control
• LED display shows input voltage, output power, and protection modes

Safe to Use

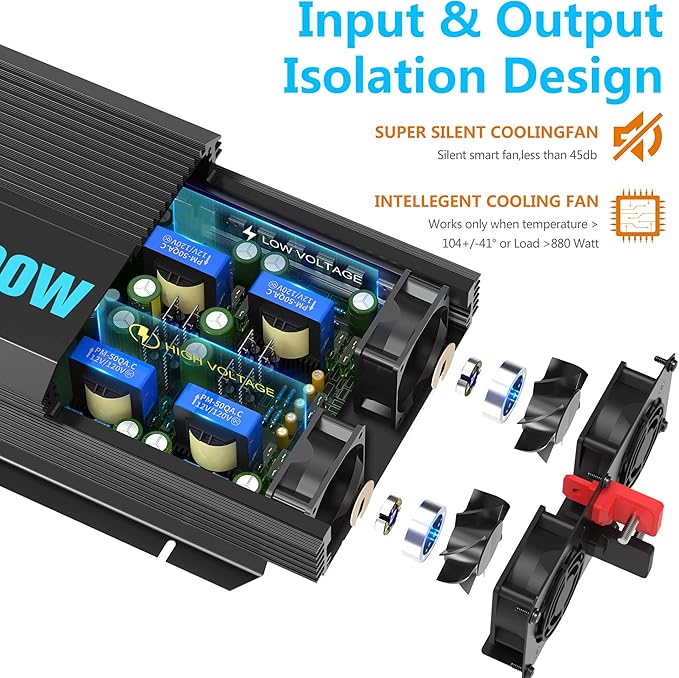

• Isolated input/output design with soft start technology
• Protection against over-voltage, low voltage, overload, short circuit, overheating, and reverse polarity (fuse)
• ETL listed and complies with UL458 standard

Heavy Duty

• 20 Amp hard wire terminal blocks for heavy-duty appliances
• Recommended to use with 200AH or larger batteries for optimal performance and longevity

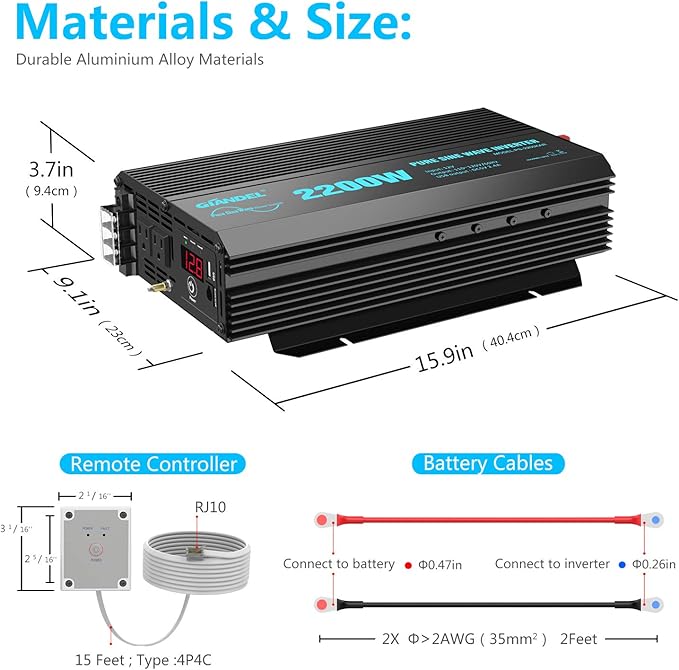

Pure Copper Cables

• Includes one pair of pure copper cables (2 feet, 35mm²)
• Cables are thicker than 2 AWG and capable of handling up to 2200W loads

Low THD

• Total Harmonic Distortion (THD) is only 3%, providing stable performance
• Ideal for appliances under 2200W

3-Year Warranty

• Durable aluminum alloy housing with a high-speed intelligent cooling fan to reduce heat and extend the inverter's lifespan
• 36-month warranty by GIANDEL

Product Description

Sturdy Case

Made of aluminum, it is more durable than other plastic cases. A slight drop or impact will not affect the internal parts.

Cooling Fan

More comfort, less heat. The cooling fan is normally started at 1/3 of the rated power of the inverter. After rotating, the efficiency will not decrease, but increase.

0~2.4A USB High speed charging

Safe charging design provides protection against, overheating, under and over voltage charging, short circuiting, overloads, and overcharging.

Remote Control

Inverter with Remote Control: cable length 15ft,the long cable will help you control the inverter ON/OFF easily.

GIANDEL A leading Global inverter brand in USA,UK,AUSTRALIA,GERMANY,etc,our factory has been devoted to producing quality products for over 20 years. Giandel inverters has been must-have for your road trips, vacations, outdoors, emergency kits and more. GIANDEL pure sine wave inverters are more compatitable and widely used for inductive loads such as Laptop, Linear Adaptor, switching power supply, motor,freezers,fans and so on. They decrease the rush current and have lower interference,reduce the noise,prolong the device life.

SPECIFICATIONS:

Power: 2200watts rating power

Output Wave: Pure Sine Wave

Input Voltage: 9.8-16VDC

Output Voltage: 120VAC±10%

USB:DC5V 2.4A

Standby current: 2 amps

Efficiency: up to 91%

THD≤3%

LED Display: Shows battery voltage,output power,protection modes.

Remote Controller with 15ft cables

Built-in intelligent cooling fan: Will run automatically when the temperature reaches 104℉ or load power is more than 40% of rated power.

Over-temperature Protection: Around 149℉

Over-voltage Shutdown: 16V±0.5VDC

Under-voltage Alarm: 9.8V±0.5VDC

Under-voltage Shutdown: 9.5V±0.5VDC

Over load protection: 2200W-2500W

ATTENTION:

Connect the inverter to a 12V battery with the standard cables provided with product, and plug your AC devices into the inverter.

Please do not leave the power inverter in the ON position while your car is off.

Disconnect the positive battery terminal before doing any wiring to the inverter.

Do not put the inverter into sunlight directly, keep it in cool and dry environment.

Don’t use the inverter with a product that draws a higher wattage the inverter can provide, as this may cause damage to the inverter and product.

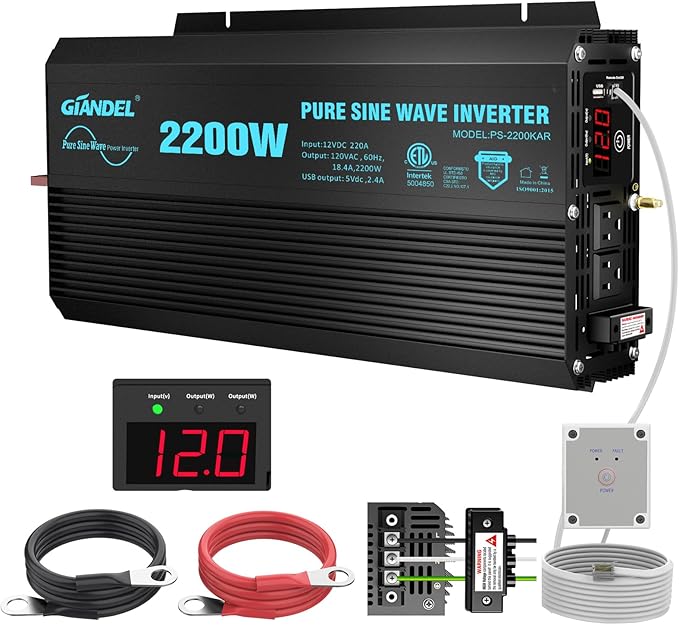

PACKAGE LIST:

1x 2200watt Sine wave Power Inverter

2x Battery Cables (black and red)

1x Remote Controller

1x User Manual
