SKU:LFP22-1255OB
OPEN BOX LFP22-1255 LiFePO4 Li-Iron 12V 55AH Deep Cycle Battery
OPEN BOX LFP22-1255 LiFePO4 Li-Iron 12V 55AH Deep Cycle Battery
Share
Regular price
$187.99 USD
Sale price
$187.99 USD
Regular price
Unit price
per
Hurry, only 1 left in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns
OPEN BOX Condition: May have cosmetic scratches or blemishes due to shipping or
handling. May be demo batteries installed for a few days.
Thoroughly
tested to ensure a capacity of 95%-100% of brand new batteries."Times New Roman"">mso-fareast-font-family:"Times New Roman"">
Includes a 12 Month Warranty."Times New Roman"">
LFP22-1255
Motors, Solar Power Backup, UPS, Portable Devices, Medical Cart
Applications, Camping, Trailers, Boats, and most deep cycle
applications.
NOT RECOMMENDED for engine start applications.

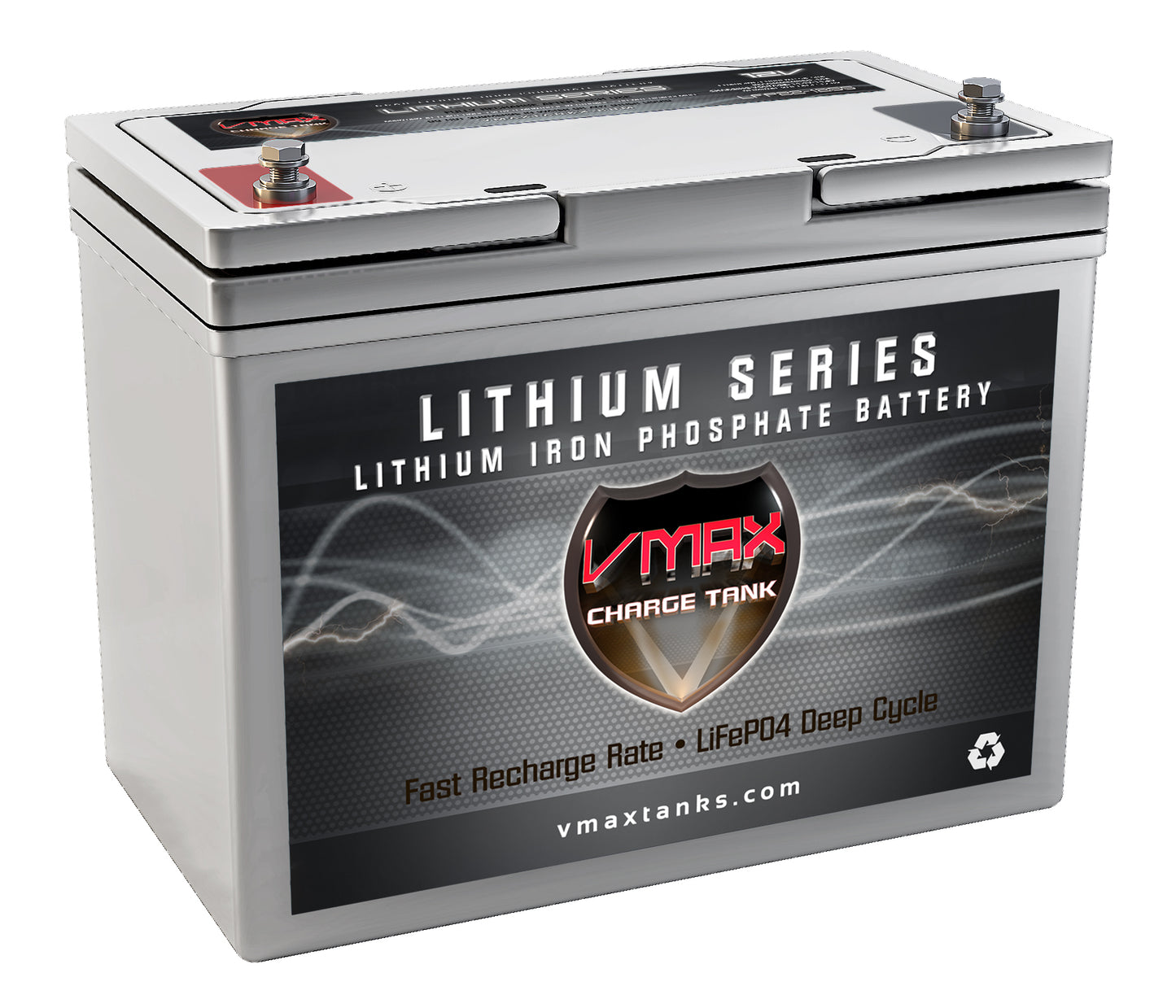

VMAX 12V 55AH HIGH PERFORMANCE DEEP CYCLE LIFEPO4 BATTERY
Recommended uses:
Trolling
| Nominal Voltage | 12.8V (3.2V/cell) |
| Rated Capacity (20h @ 25C) | 55AH |
| Rated Energy | 704Wh |
| Output Voltage Range | 10.0V-14.6V |
| Charging Voltage | 14.4V - 14.6V (CC-CV) |
| Cut-Off Voltage | 10.0V |
| Max. Constant Charging Current | 50A |
| Recommended Charging Current | 10A -25A |
| Recommended Charger Type | CC-CV until current <1.1A (0.2C) |
| Max. Constant Discharge Current | 50A |
| Max. 3sec Discharge Current | 75A |
| Charging Temperature | 0C ~ 45C (+32F~ +113F) |
| Discharging Temperature | -20C ~ 65C (-4F ~ +150F) |
| Storage Temperature | -20C ~ 45C (-4F ~ +113F) |
| Efficiency | >98% |
| Built-in BMS | Yes |
| Over-Charge Voltage Protection | Module: >14.8V, Cell: >3.8V |
| Over-Discharge Voltage Protection | Module: <10.0V, Cell: <2.0V |
| Over-Charge Current Protection | >57A w/15sec Delay, >80A w/ 2sec Delay |
| Over-Discharge Current Protection | >57A w/ 15sec Delay, >80A w/ 2sec Delay |
| Short-Circuit Protection | >400A |
| Cell Balance | Passive, 150mA |
| Over-Temperature Protection-Charging | <-5C ( 23F) , >65C (150F) |
| Over-Temperature Protection-Discharging | <-20C (-4F), >65C (150F) |
| Cycle Life @80% DOD | ~6000 @ 10A, 25C (77F)l |
| Cycle Life @90% DOD |
>4000 @ 10A, 25C (77F) |
| Design Life | ~10 Years |
| Battery Case Material | ABS |
| Dimensions L x W X H | 9" x 5.5" x 8.2" |

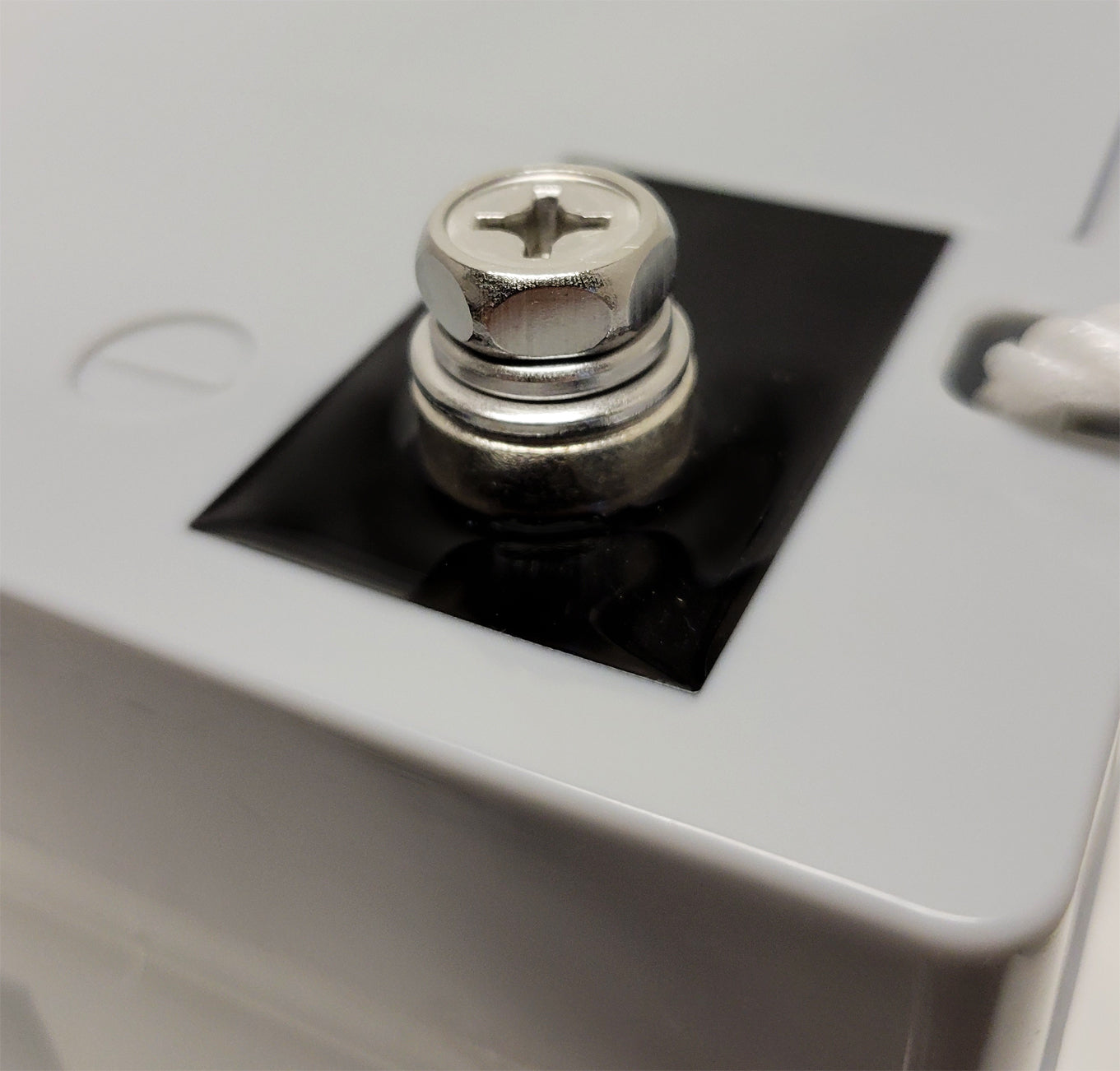

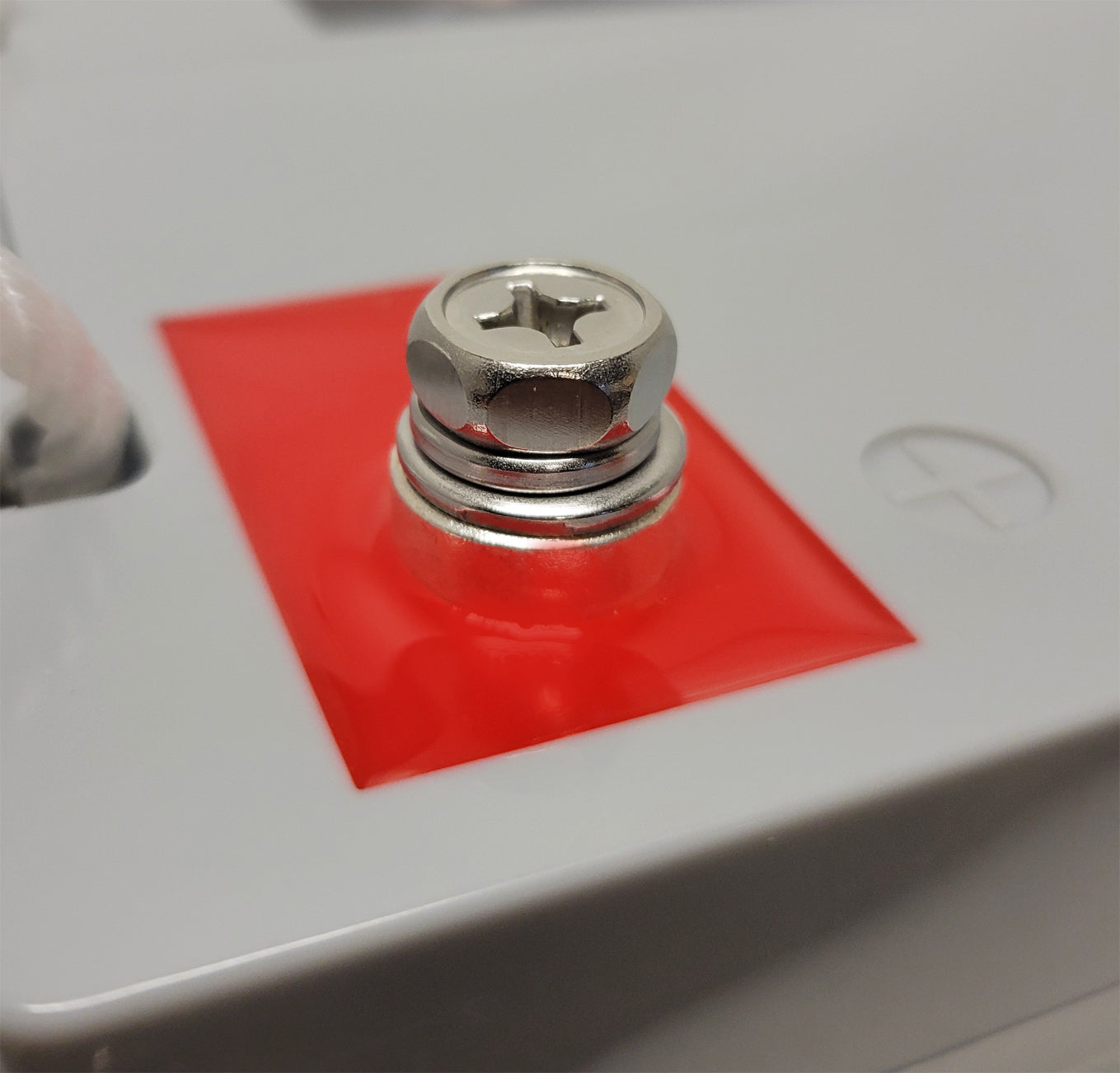

| Terminals | M8 Screw In (~5/16") |
| Weight | 15.5lb |
VMAX
LFP battery modules consist of high quality cells, components and a
custom designed BMS giving them many advantages including:
- High performance long life, safe and wide temperature range LFP single cells.
- High energy density, small size, light weight, no pollution.
- High efficiency, fast charging.
- Built-in BMS offering voltage, current and temperature protection.
- Standard battery case for an easy VRLA battery replacement.
- 10 years design life, Stable performance, maintenance-free.
- Use a VMAX AGM Charger* or a LiFePO4 Smart & Microprocessor controlled charger with the recommended specs above.
- <15V alternator if used in vehicle or marine application.
- Compatible Lithium Charge controller if used in solar applications.
- Charge at Max Charging current only in situations when fastest charging rate is needed. Not recommended on an ongoing basis.
- Do not Recondition Lifepo4 batteries.
| VMAX Charger Model # |
EST. Charging Time (Hours) |
| VBC1205LFP |
11 |
| VBC1210LFP |
6 |
| VBC1215LFP |
4 |
| VBC1220LFP |
3 |
Motors, Solar Power Backup, UPS, Portable Devices, Medical Cart
Applications, Camping, Trailers, Boats, and most deep cycle
applications.
BCI Group Codes*:
Matching Termination: 22 (+ on L.H.S. & -
on R.H.S)Battery comes with carrying handles that may vary in shape and color.
* Matching is based on closest
dimensional specifications.
