LFP27-12100XTRU

USED LFP27-12100XTR LiFePO4 Li-Iron 12V 100AH Dual Purpose Battery

USED LFP27-12100XTR LiFePO4 Li-Iron 12V 100AH Dual Purpose Battery

$274.99 USD
$274.99 USD
Sale Sold out

100 in stock

We accept

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • Quantity Discounts
  • Fast & Free Shipping
  • Secure Checkout
  • Easy Returns
Used
Condition: The item may show wear from use but continues to function
properly, holds a charge and passes a 100 Amp load test. Item may arrive
with damaged packaging or be repackaged. Signs of wear can include
aesthetic issues such as scratches, dents, and worn corners. The item
may have identifying markings on it or show other signs of previous
use

Includes a 6 Month Warranty.
"Times New Roman"">

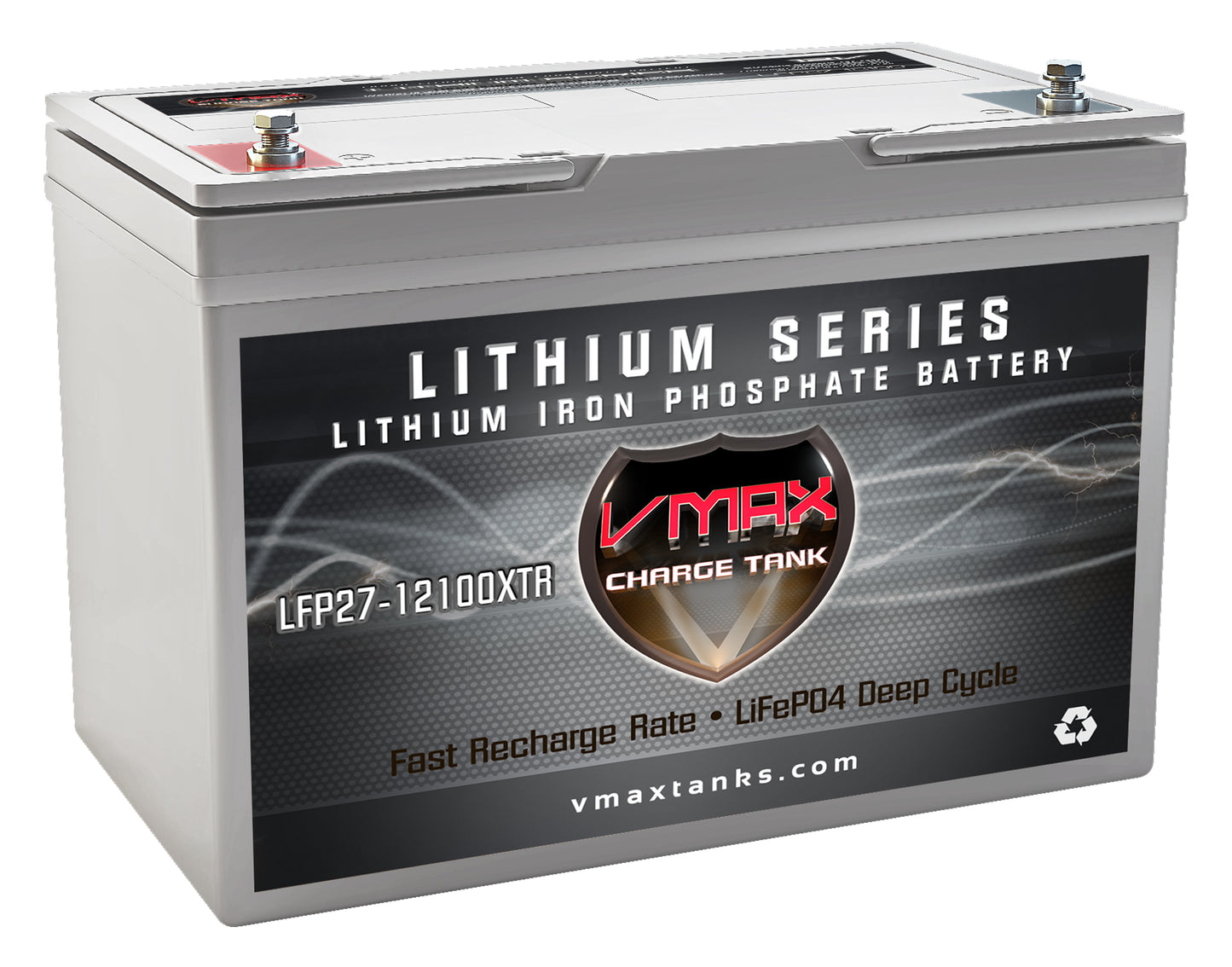

LFP27-12100XTR
VMAX 12V 100AH HIGH PERFORMANCE DEEP CYCLE/STARTING LIFEPO4 BATTERY

Nominal Voltage 12.8V (3.2V/cell)
Rated Capacity (20h @ 25C) 100AH
Rated Energy 1280Wh
Output Voltage Range 10.0V-14.6V
Charging Voltage 14.4V - 14.6V (CC-CV)
Cut-Off Voltage 10.0V
Max. Constant Charging Current 100A
Recommended Charging Current 15A~50A  (best @ 20A)
Recommended Charger Type CC-CV  until current <2A  (0.02C)
Max. Constant Discharge Current 125A
Max. 3sec Discharge Current 350A
Charging Temperature 0C ~ 45C (+32F~ +113F)
Discharging Temperature -20C ~ 65C (-4F ~ +150F)
Storage Temperature -20C ~ 45C (-4F ~ +113F)
Efficiency >98%
Built-in BMS Yes
Over-Charge Voltage Protection Module: >14.8V, Cell: >3.8V
Over-Discharge Voltage Protection Module: <10.0V, Cell: <2.0V
Over-Charge Current Protection >125A w/ Thermal Protection
Over-Discharge Current Protection >125A w/ Thermal Protection, and 350A Engine Start Capability
Short-Circuit Protection >400A
Cell Balance Passive, 150mA
Over-Temperature Protection-Charging <-5C ( 23F) , >65C (150F)
Over-Temperature Protection-Discharging <-20C (-4F), >65C (150F)
Cycle Life @80% DOD ~6000 @ 20A, 25C (77F)l
Cycle Life @90% DOD
 >4000  @ 20A, 25C (77F)
Design Life ~10 Years
Battery Case Material ABS
Dimensions L x W X H 12" x 6.7" x 8.2"

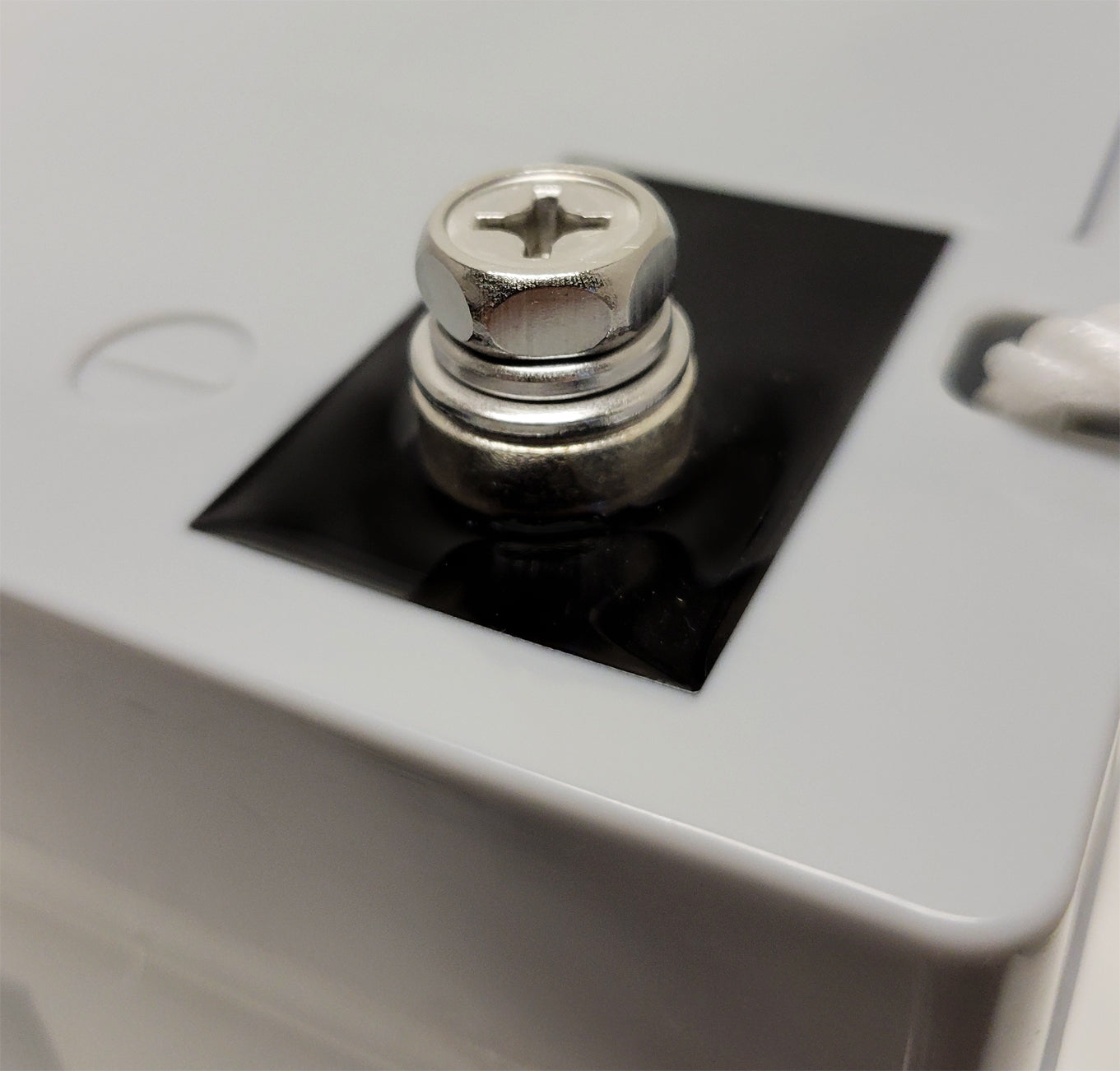

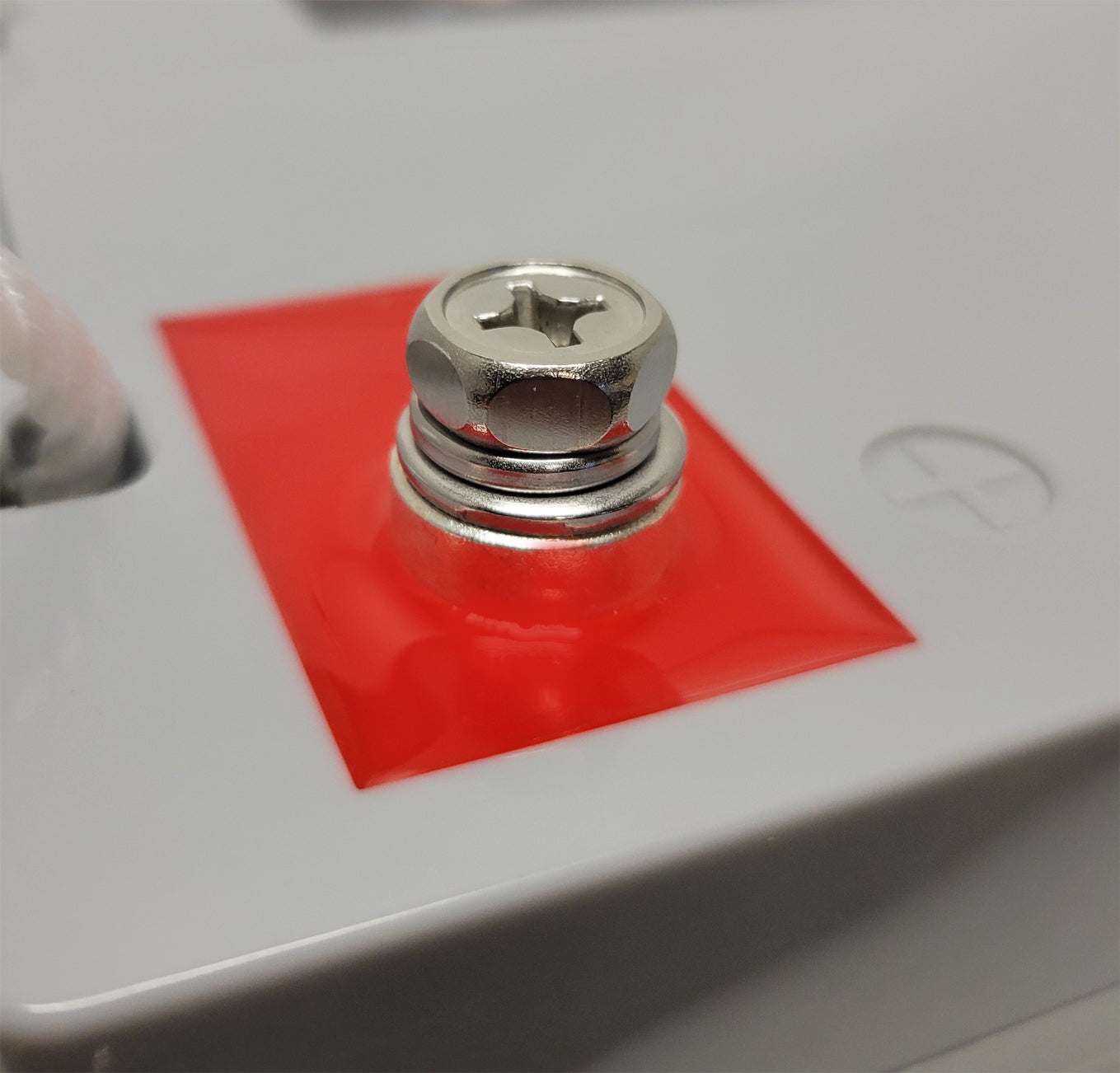

Terminals M8 Screw In (~5/16")
Weight 25.3lb


VMAX
LFP battery modules consist of high quality cells, components and a
custom designed BMS giving them many advantages including:

  • High performance long life, safe and wide temperature range LFP single cells.
  • High energy density, small size, light weight, no pollution.
  • High efficiency, fast charging.
  • Built-in BMS offering voltage, current and temperature protection.
  • Standard battery case for an easy VRLA battery replacement.
  • 10 years design life, Stable performance, maintenance-free.
Recommended Charging Options:
  • Use a VMAX AGM Charger* or a LiFePO4 Smart & Microprocessor controlled charger with the recommended specs above.
  • <15V alternator if used in vehicle or marine application.
  • Compatible Lithium Charge controller if used in solar applications.
  • Charge at Max Charging current only in situations when fastest charging rate is needed. Not recommended on an ongoing basis.
  • Do not Recondition Lifepo4 batteries.
* VMAX Charging time for a fully discharged 100AH battery:
VMAX Charger Model #
 EST. Charging Time (Hours)
VBC1210LFP
 10
VBC1215LFP
 7
VBC1220LFP
 5

Recommended uses:
Trolling
Motors, Solar Power Backup, UPS, Portable Devices, Medical Cart
Applications, Camping, Trailers, Boats, and most deep cycle
applications.
Audio:1600Wrms, 4500Wpeak
Parallel wiring is acceptable for up to FOUR batteries.
Series wiring is acceptable for up to FOUR batteries.

BCI Group Codes*:

       Matching Termination:  27 (+ on L.H.S. & -
on R.H.S)Battery comes with carrying handles that may vary in shape and color.



* Matching is based on closest
dimensional specifications.
