SKU:OB40XTR6-235

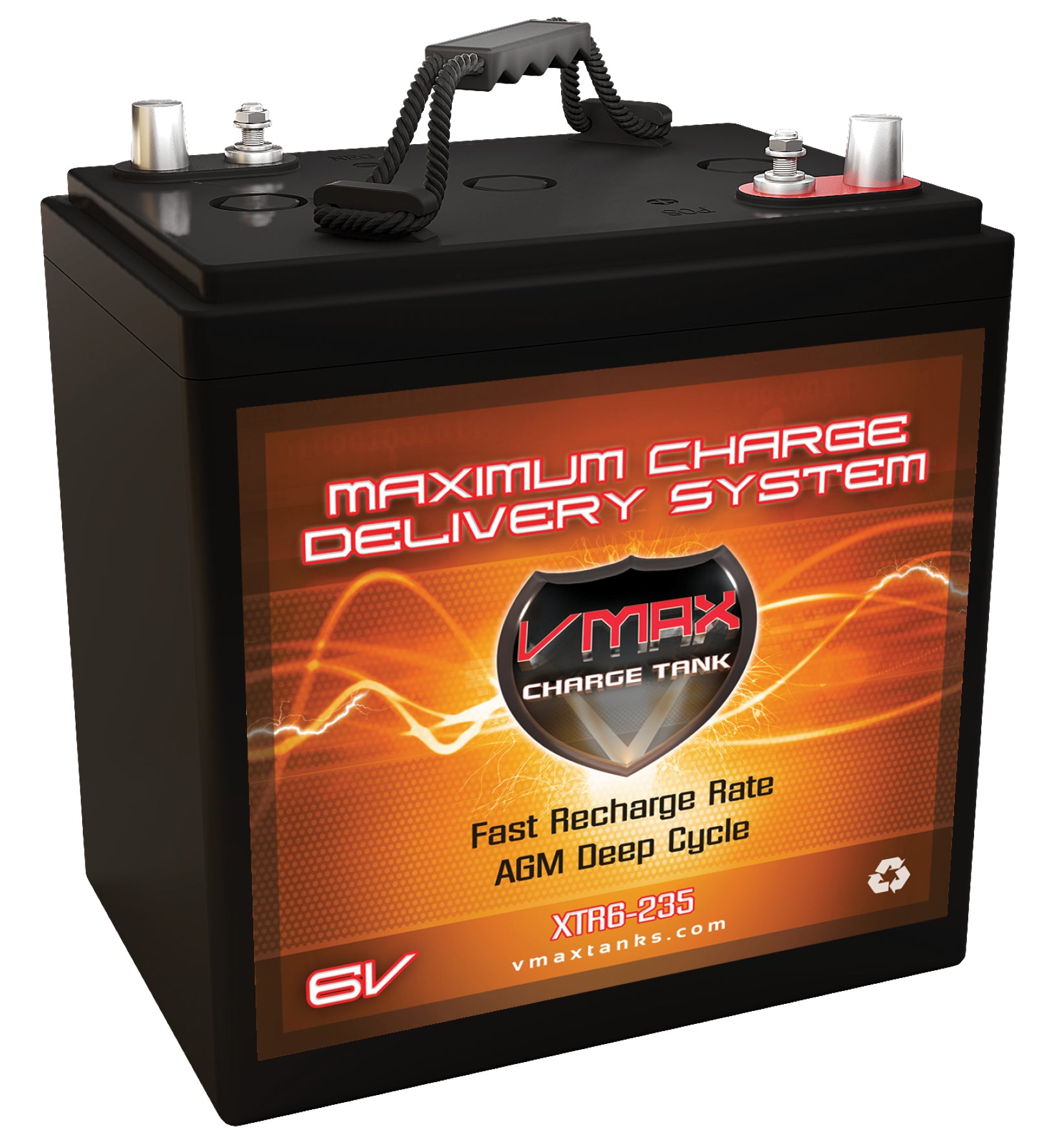

USED XTR6-235 6V 235AH Deep Cycle, XTREME AGM Battery.
USED XTR6-235 6V 235AH Deep Cycle, XTREME AGM Battery.
Share
Regular price
$192.99 USD
Sale price
$192.99 USD
Regular price
Unit price
per
Hurry, only 2 left in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns
Used Condition: The item
may show wear from use but continues to function properly, holds a charge and
passes a 100 Amp load test. Item may arrive with damaged packaging or be
repackaged. Signs of wear can include aesthetic issues such as scratches,
dents, and worn corners. The item may have identifying markings on it or show
other signs of previous use.
Includes a 6 Month
Warranty.
XTR6-235
Superior Plates with an expected life span of 10 to 12 years in float service applications.
Do not use a charger with smaller amperage than the recommended Charging
Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER
as a charger.**Total Height including terminal post.
normal">Operating Temperature Range:
BCI Group Codes*:mso-fareast-font-family:"Times New Roman"">
Matching Termination: GC2
mso-fareast-font-family:"Times New Roman"">* Matching is based on closest
dimensional specifications. Differences in hold downs and termination may
require some accommodations and/or the extension of one or both vehicle's
battery cables. mso-fareast-font-family:"Times New Roman"">
| Nominal Voltage | 20Hr Capacity | CCA |
MCA |
RC (min) |
Energy (kWH) |
Terminal Posts | Dimensions | Weight |
Charging Current* |
Charging Voltage |
Float Voltage |
| 6V | 235AH |
1100A |
1400A |
500 |
1.620 | SAE+5/16" STUD | 10.2"w x 7.1"d x 10.2"h/11.25th** | 78lb |
15A-65A |
7.2V-7.35V |
6.8V-6.9V |
| 25A @ 1.75/Cell 500Min |
|
| mso-fareast-font-family:"Times New Roman"">75A @ 1.75/Cell 130Min |
Recommended Charging Options:
-
AC
Chargers: Any Quality Brand AGM-
Smart & Microprocessor controlled- charger with the recommended specs above
can be used. Battery Charger Guide. -
"Times New Roman"">Solar Panel: 175W-450W (120W may be used if Depth of Discharge would not exceed 50%).
Do not use a charger with smaller amperage than the recommended Charging
Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER
as a charger.**Total Height including terminal post.
normal">Operating Temperature Range:
- "Times New Roman"">Discharge: -4~140F
- "Times New Roman"">Charge: 14~140F
- "Times New Roman"">Storage: -4~140F
- Cycle
use: -15mV/C - Standby
use: -10mV/C
BCI Group Codes*:mso-fareast-font-family:"Times New Roman"">
Matching Termination: GC2
mso-fareast-font-family:"Times New Roman"">* Matching is based on closest
dimensional specifications. Differences in hold downs and termination may
require some accommodations and/or the extension of one or both vehicle's
battery cables. mso-fareast-font-family:"Times New Roman"">
