SKU:VBC1230

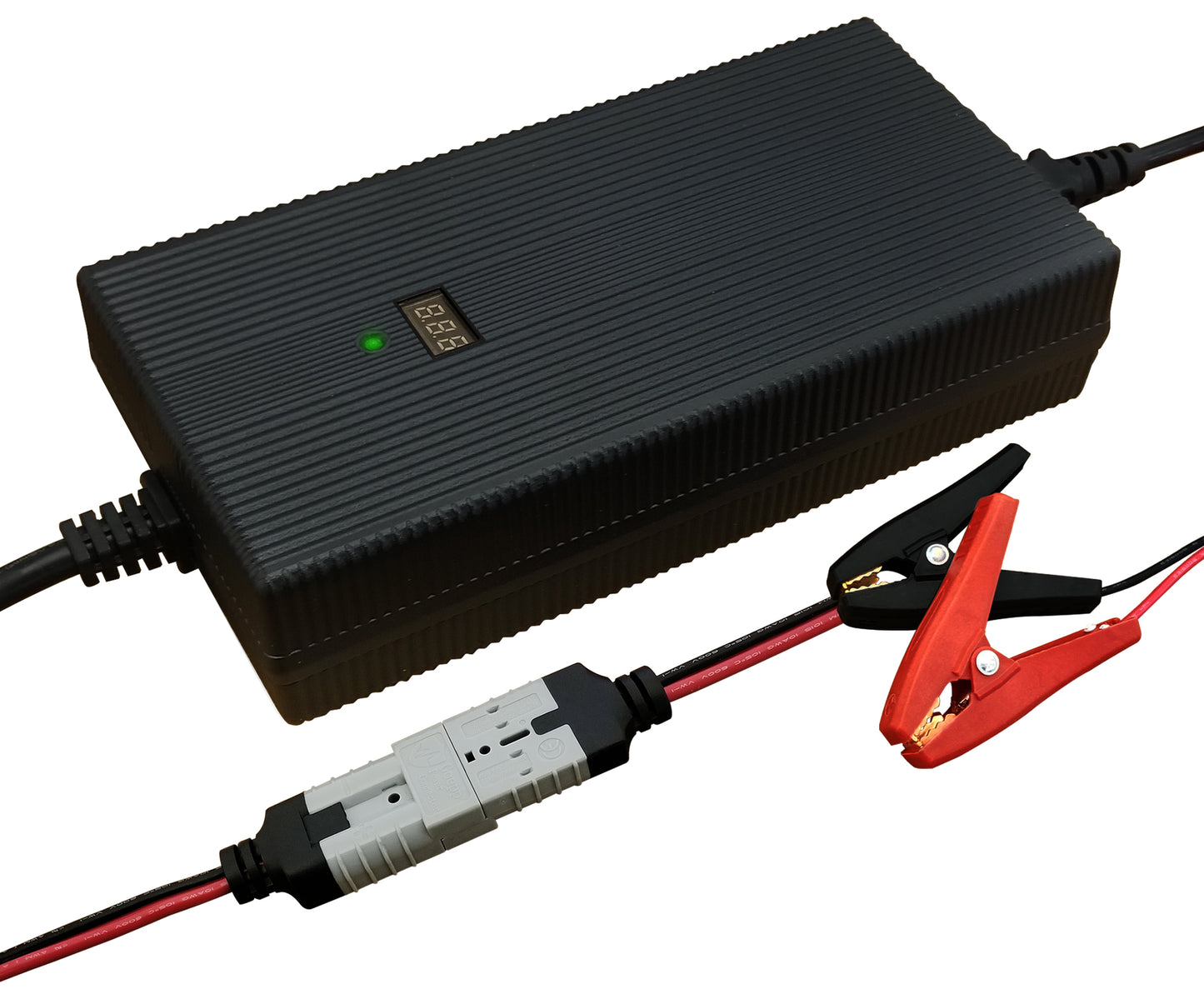

VBC1230 30A 12V 3-Stage Smart AGM/SLA Battery Charger / Maintainer
VBC1230 30A 12V 3-Stage Smart AGM/SLA Battery Charger / Maintainer
Share
Regular price
$299.99 USD
Sale price
$299.99 USD
Regular price
Unit price
per
100 in stock
We accept
- Quantity Discounts
- Fast & Free Shipping
- Secure Checkout
- Easy Returns
The 1230 is a fully Automatic, 30A, Smart 3-STAGE Charger/Maintainer.
Automatic
charging protects your battery from being overcharged. So you can leave
the charger connected to the battery indefinitely.
The 3 stages are:
Bulk; Absorption & Float.
charging protects your battery from being overcharged. So you can leave
the charger connected to the battery indefinitely.
The 3 stages are:
Bulk; Absorption & Float.
Uses:
Charging AGM, SLA, VRLA AND WET Batteries.
It can also be used as a 30A DC power supply.
Specifications:
Input Voltage: 110-240VACMAX Input Current: With Load: 5A, No Load: 0.05AInput Power: With Load: 440W, No Load: 1.5W
Nominal Voltage:12V
Bulk Charge Voltage: 14.4V-14.8V, Current: 30A
Bulk Charge Voltage: 14.4V-14.8V, Current: 30A
Absorption Charge Voltage: 14.6V. Current: 30A - 9A
Float Voltage: 13.8V +/- 0.2V with Pulse Charging.
Bulk Charge Current: 30A
Battery Type: AGM, SLA (Sealed Lead Acid), Wet
Recommended Battery Capacity: 90Ah-500Ah
Float Voltage: 13.8V +/- 0.2V with Pulse Charging.
Bulk Charge Current: 30A
Battery Type: AGM, SLA (Sealed Lead Acid), Wet
Recommended Battery Capacity: 90Ah-500Ah
Operating Temperature: -20F ~ 115F
Storage Temperature: -40F ~ 165F
Connector: Insulated Alligator Clamps
Connector: Insulated Alligator Clamps
Charging Cord Length: 4ft
Size: 10.5" L x 5.3" W x 2.6" H
Weight: 7 lb.
If Battery voltage is below 8V, LED will turn GREEN while charger
performs soft start charging; to raise the Battery voltage to 8V.
If LED does not turn RED at any point after powering Charger and
connecting it to Battery, disconnect and troubleshoot Battery and
Charger.
Size: 10.5" L x 5.3" W x 2.6" H
Weight: 7 lb.
Charging Instructions:
1- Connect the RED Charger alligator clamp to the RED Positive (+) Battery Terminal.
2- Connect the BLACK Charger alligator clamp to the BLACK Negative (-) Battery Terminal.
3- Connect the Charger AC power cord to the 110V/220V AC mains powered socket.
4- Upon detecting a good battery with minimum Voltage of 8V, LED will TURN RED as Bulk Charging begins.
If
Battery is almost charged when connected, and charging current is
<9A, LED will Blink RED then switch to GREEN as charger goes into Float mode.
Battery is almost charged when connected, and charging current is
<9A, LED will Blink RED then switch to GREEN as charger goes into Float mode.
If Battery voltage is below 8V, LED will turn GREEN while charger
performs soft start charging; to raise the Battery voltage to 8V.
If the Battery accepts the charge, LED will turn RED at 8V and BULK Charging begins.
5- As the charging current drops below 9A, LED will switch to GREEN and Charger will go into Float mode.
Charger will slowly bring the battery to 100% State of Charge as charging current drops to 0A.
If LED does not turn RED at any point after powering Charger and
connecting it to Battery, disconnect and troubleshoot Battery and
Charger.
Most probable cause is a defective Battery.
6- Turn power switch OFF and Disconnect AC cord from mains and alligator clamps from battery.
NOTE:
Charger output -as displayed by LCD- is 0.1V~0.2V higher than actual
voltage at battery terminals to make up for Cable and Connection losses.
Charger output -as displayed by LCD- is 0.1V~0.2V higher than actual
voltage at battery terminals to make up for Cable and Connection losses.
Estimated Charging Time:
| BATTERY CAPACITY | EST. CHARGING TIME |
| 90AH | 3HR |
| 120AH | 4HR |
| 300AH | 10HR |
| 450AH | 15HR |
