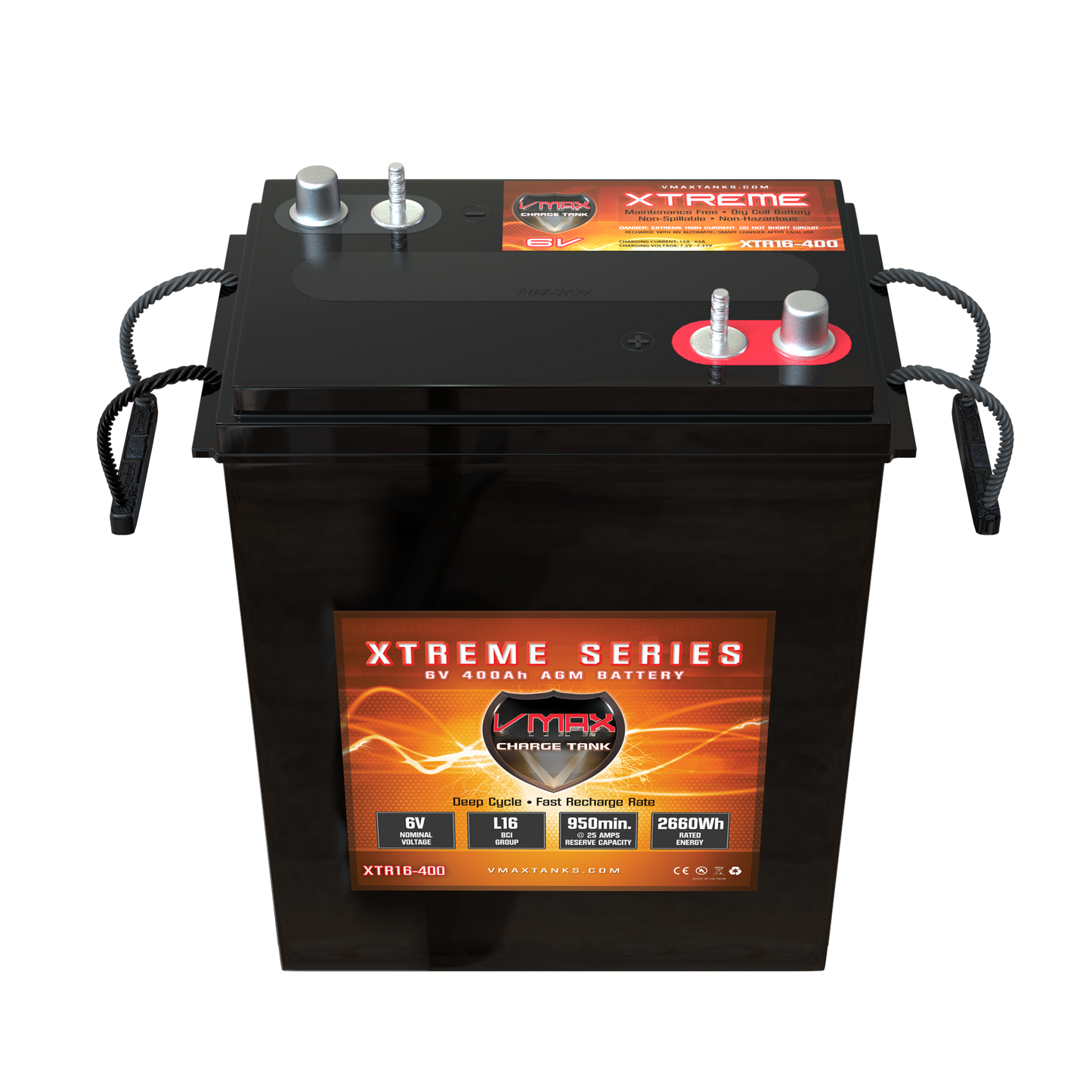

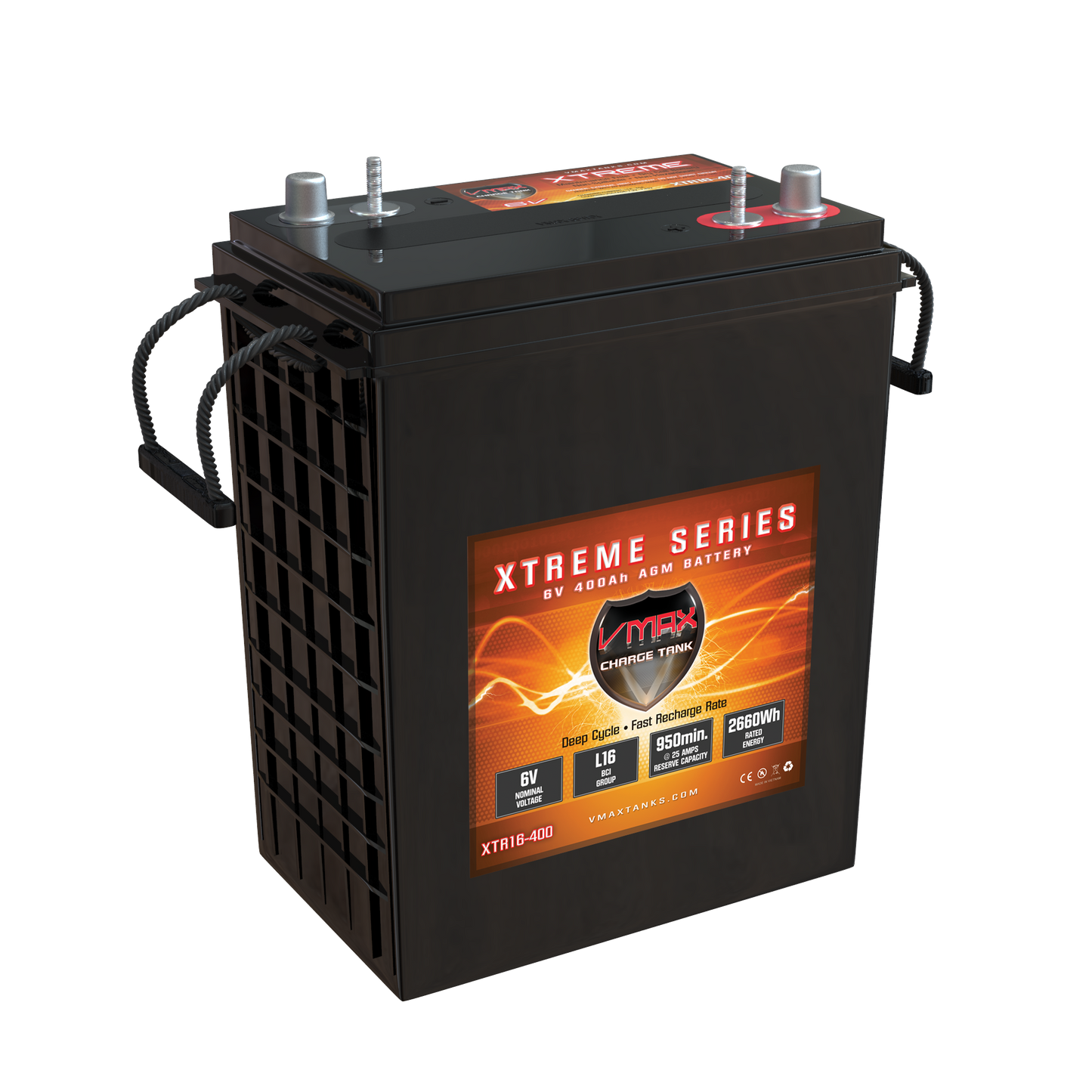

Deep Cycle AGM Maintenance-Free VRLA Sealed Battery

Superior Plates with an expected life span of 10 to 12 years in float service applications.

Specifications

• Nominal Voltage: 6V
• Capacity: 400Ah
• Weight: 125 LBS
• Dimensions: 11.6"W x 7.1"D x 15.9"H (16.7" total height including terminals)
• Terminal Posts: SAE + 5/16" (Coarse-18) STUD
• Cranking Amps: 1100A
• Reserve capacity @25A: 940min
• Reserve Capacity @75A: 265min
• Energy: 2.66 kWh
• Charging Voltage: 7.2V-7.35V
• Charging Current: 25A-120A
• Float Voltage: 6.8V-6.9V

Applications:

The VMAX XTR16-400 is suitable for a variety of applications, including:

• Aerial Lifts
• Floor Cleaning Machines
• Solar Energy Systems
• Recreational Vehicles
• Marine Equipment
• Industrial Machinery

Recommended Charging Options:

• AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used.
• Solar Panel: 300W-800W (200W may be used if the Depth of Discharge would not exceed 50%).

Warning: Do not use a charger with a smaller amperage than the recommended Charging Current shown above. Small maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger

Operating Temperature Range:

• Discharge: -4~140F
• Charge: 32~120F
• Storage: -4~140F

Temperature Compensation:

• Cycle use: -15mV/C

• Standby use: -10mV/C
