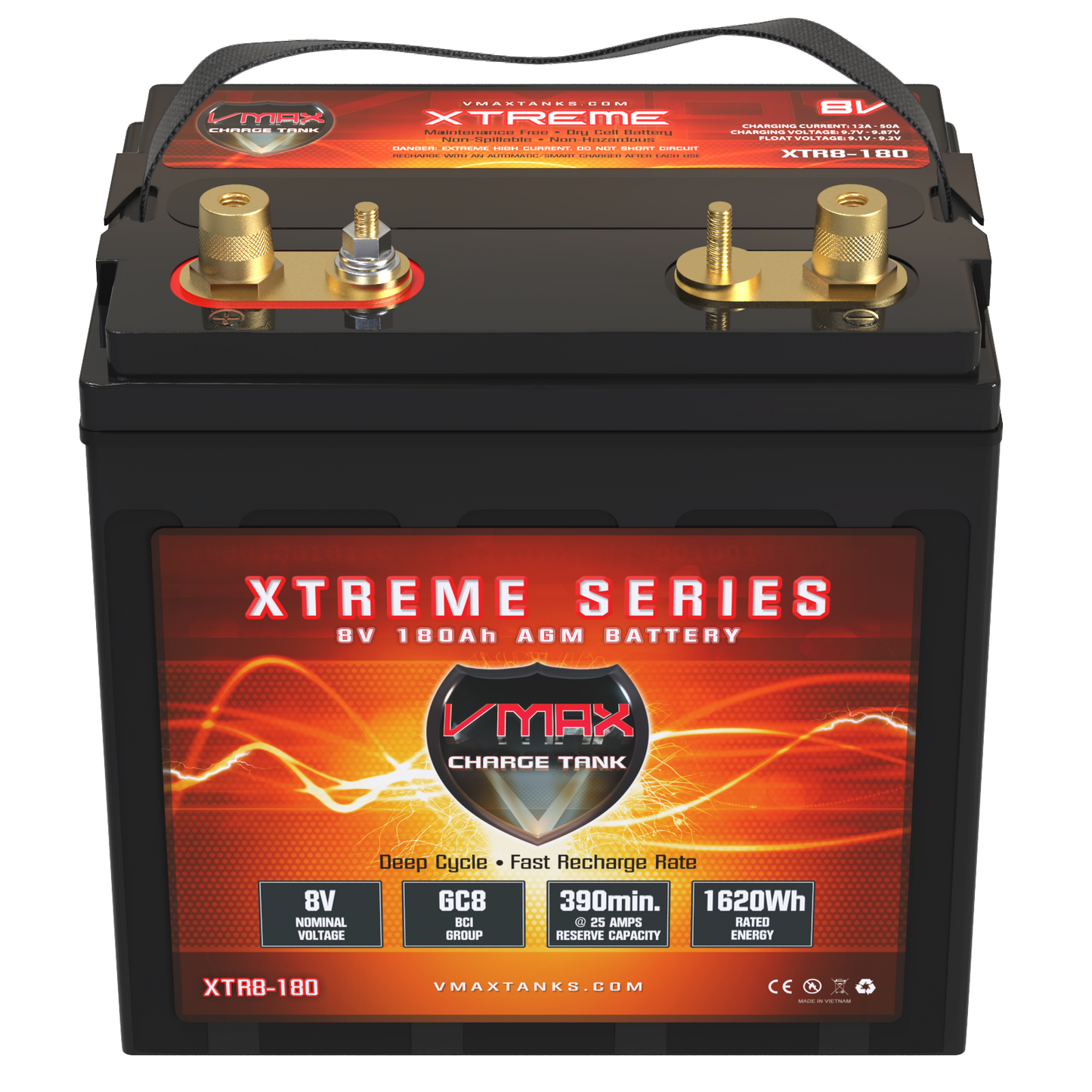

8V 180Ah Extreme Series Battery

Description

The XTR8-180 is an 8-volt, 180AH Group GC8 deep cycle AGM battery engineered for high performance and durability. Its superior plates are designed for an extended lifespan of 10 to 12 years in float service applications. With industry-leading cycle life, this battery is rated for 1,000 charge cycles at 50% depth of discharge (DOD) and an impressive 2,600 cycles at 25% DOD, making it a reliable solution for long-term energy needs.

1-Year Manufacturer's Replacement Warranty.

Features

• High Capacity: Delivers 180AH, ensuring ample power for various applications.
• Exceptional Cycle Life: Rated for 1,000 cycles at 50% DOD and 2,600 cycles at 25% DOD for sustained performance.
• Robust Construction: Built with superior plates for enhanced durability and longevity.
• Maintenance-Free: AGM technology eliminates the need for regular maintenance.
• Versatile Applications: Ideal for recreational vehicles, floor cleaning machines, solar energy systems, lifts, and more.
• Non-Spillable Design: It is safe for use in regulated environments such as healthcare facilities, airports, and educational institutions.

Why Choose the XTR8-180?

This battery offers a reliable and maintenance-free power solution, making it suitable for various applications. Its non-spillable design ensures safety in various settings, while its high capacity, exceptional cycle life, and robust construction deliver consistent performance over an extended period.

Specifications

• Nominal Voltage: 8V
• Capacity: 180AH
• Cold Cranking Amps (CA): 700A
• Reserve Capacity (RC) at 25A: 390 minutes
• Reserve Capacity (RC) at 75A: 90 minutes
• Energy: 1.62 kWh
• Terminal Posts: SAE + 5/16" (Coarse-18) Stud
• Dimensions: 10.2" (W) x 7.17" (D) x 10.5" (H) / 10.7" (Total Height including terminal post)
• Weight: 76 lbs
• Charging Current: 12A-50A
• Charging Voltage: 9.7V-9.87V
• Float Voltage: 9.1V-9.2V

Operating Temperature Range

• Discharge: -4°F to 140°F
• Charge: 32°F to 140°F
• Storage: -4°F to 140°F

Recommended Charging Options:

• AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used.
• Solar Panel: 175W-450W (120W may be used if Depth of Discharge would not exceed 50%).

Warning: Do not use a charger with a smaller amperage than the recommended Charging Current shown above. Small maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger

Operating Temperature Range:

• Discharge: -4~140F
• Charge:     32~140F
• Storage:     -4~140F

Temperature Compensation:

• Cycle use:     -15mV/C

• Standby use: -10mV/C


UPC: 030955763538
